MS-FMR-2U-100 Tool-less 2U Friction Server Rails
SKU MS-FMR-2U-100 · Sliding Rack Rails
19-inch rack fit. 436–439 mm chassis width. Custom length and hole positions.
MS-FMR-2U-100 Tool-less 2U Friction Server Rails
- Chassis width
- 436–439 mm
- Chassis height
- 1U / 2U / 3U / 4U
- Server brands
- Dell / HP
- Load capacity
- 100 kg per pair
- 24-hour static test at full extension, chassis included
- Rack-side installation
- Tool-less
- Customization
- Rail length and mounting-hole positions
- Sliding structure
- Friction
- Rack fit
- 19-inch rack
The MS-FMR-2U-100 is a tool-less friction server rail for standard 19-inch racks and 1U to 4U server chassis 436–439 mm wide, with a load capacity of 100 kg. Rail length and mounting-hole positions are customized to your chassis drawing.
Technical Specifications

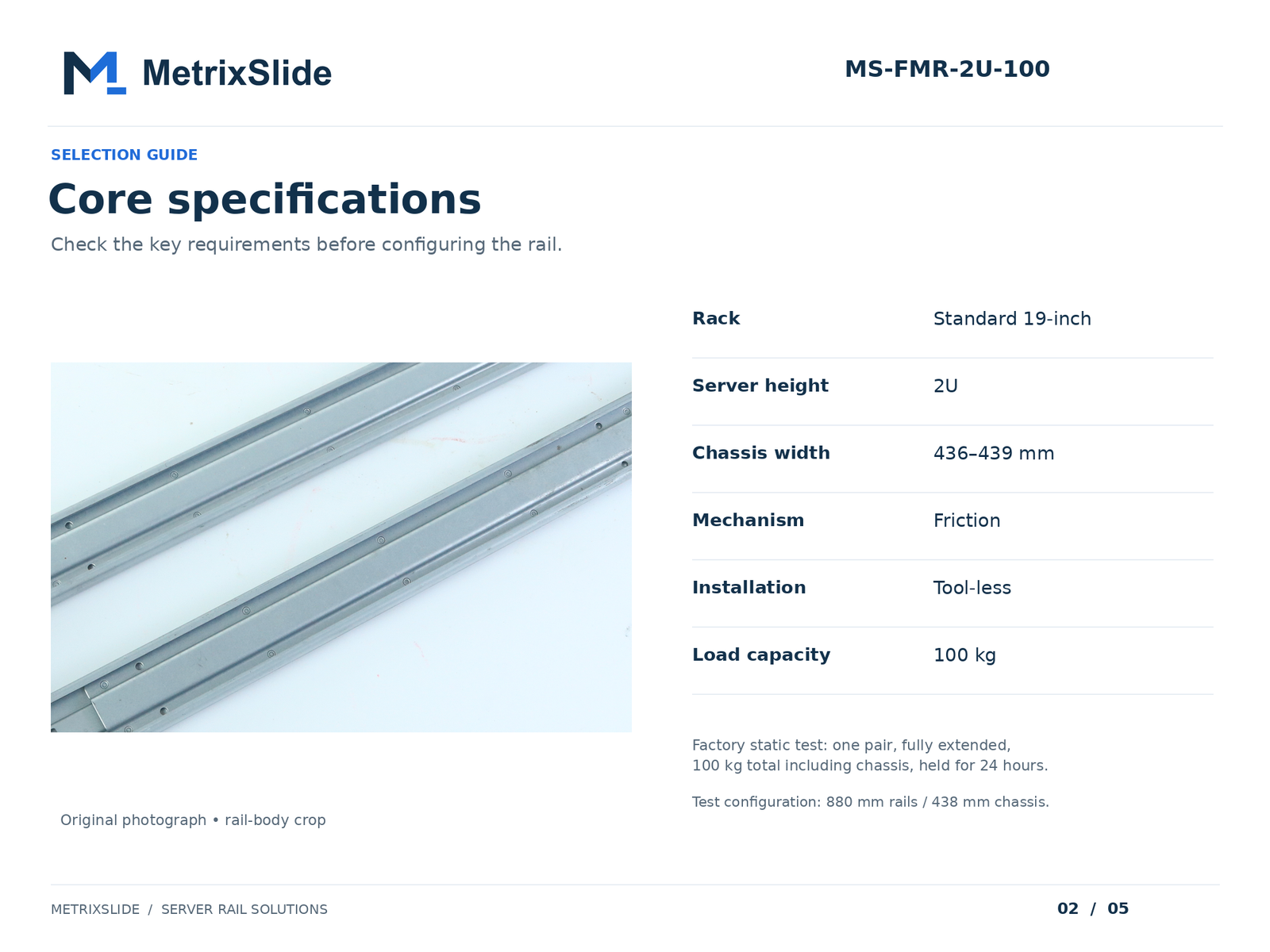

Product Summary
MetrixSlide MS-FMR-2U-100 friction server rails are designed for standard 19-inch racks and 1U to 4U server chassis 436–439 mm wide. They install without tools, carry 100 kg, and are supplied with custom rail lengths and mounting-hole positions. In the factory static-load test, one pair of rails held a 100 kg total load, including the chassis, at full extension for 24 hours with no detachment or jamming and with function retained. The tested rails were 880 mm long and the chassis was 438 mm wide. The result applies to that configuration; a change to the rail length or the mounting details is reviewed for the intended load.
Product Details
Built around your chassis dimensions
Start with your chassis depth, width, height and total equipment weight. MetrixSlide selects the rail length and bracket adjustment configuration, then matches the mounting-hole positions to your drawing.

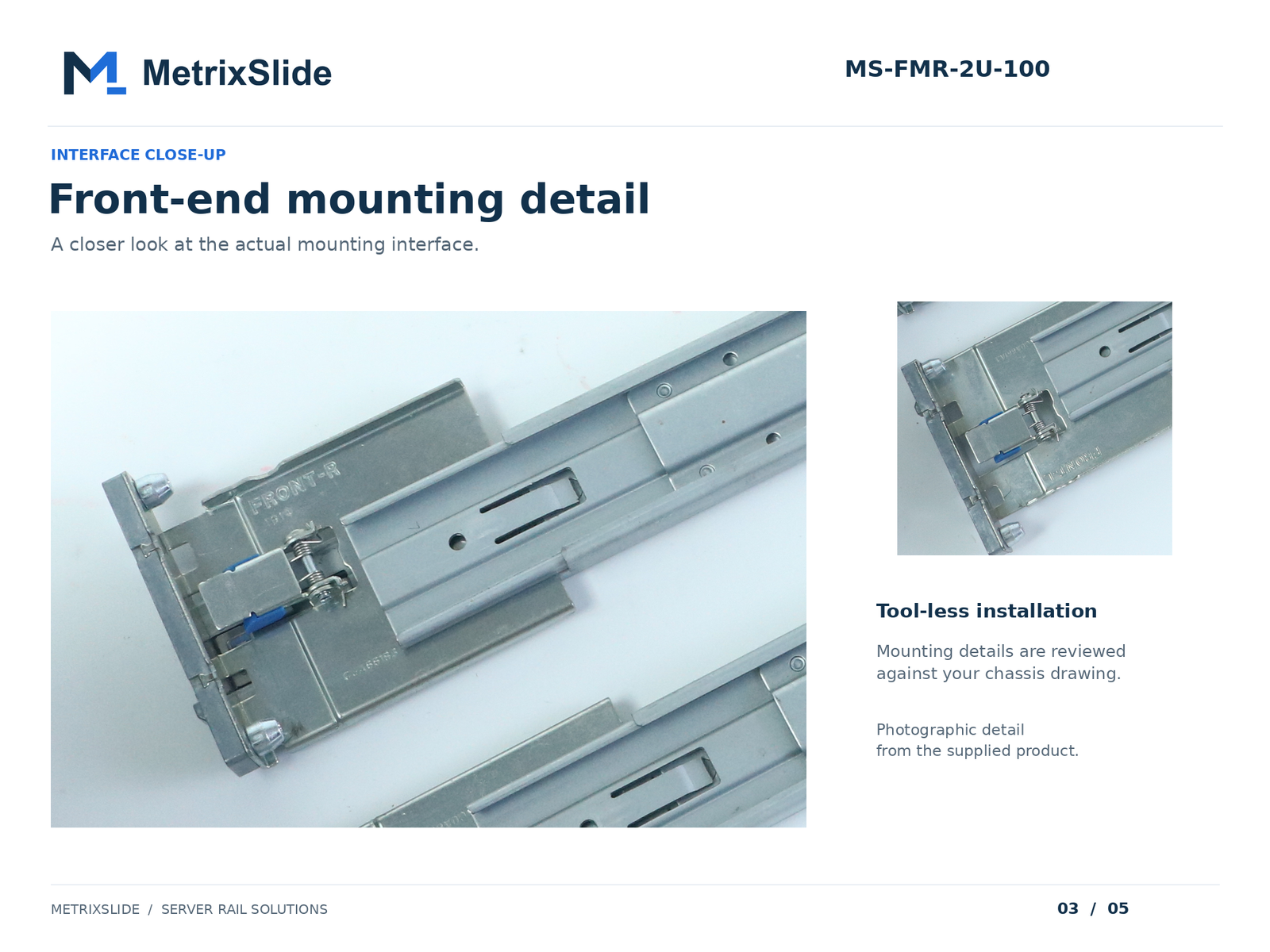

Tool-less front-end mounting
The rails install without tools. Rack-side and chassis-side interface details are reviewed against your chassis drawing.

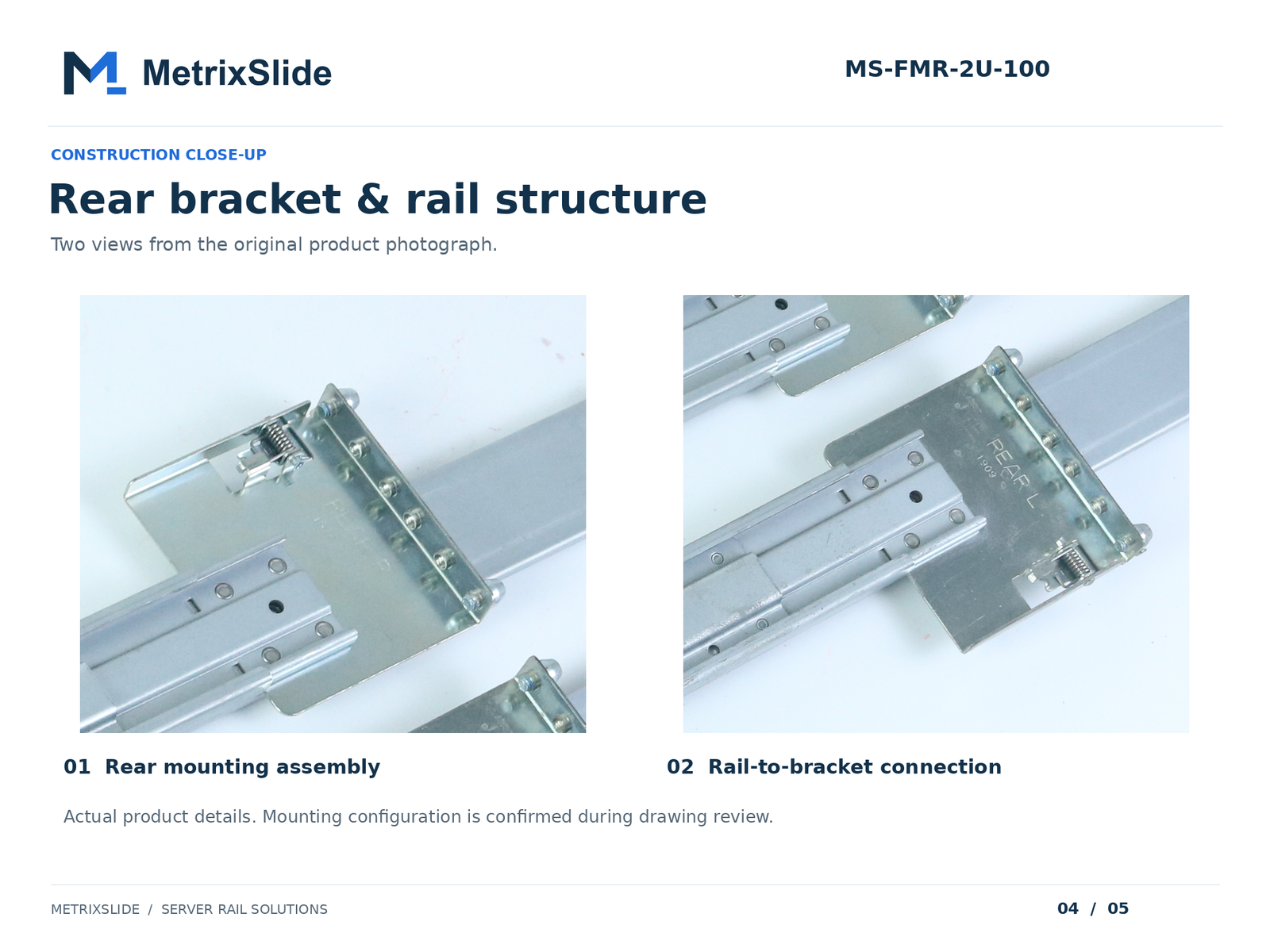

Rear bracket and rail structure
The rear mounting assembly and the rail-to-bracket connection, photographed on the actual product. The mounting configuration is confirmed during drawing review.

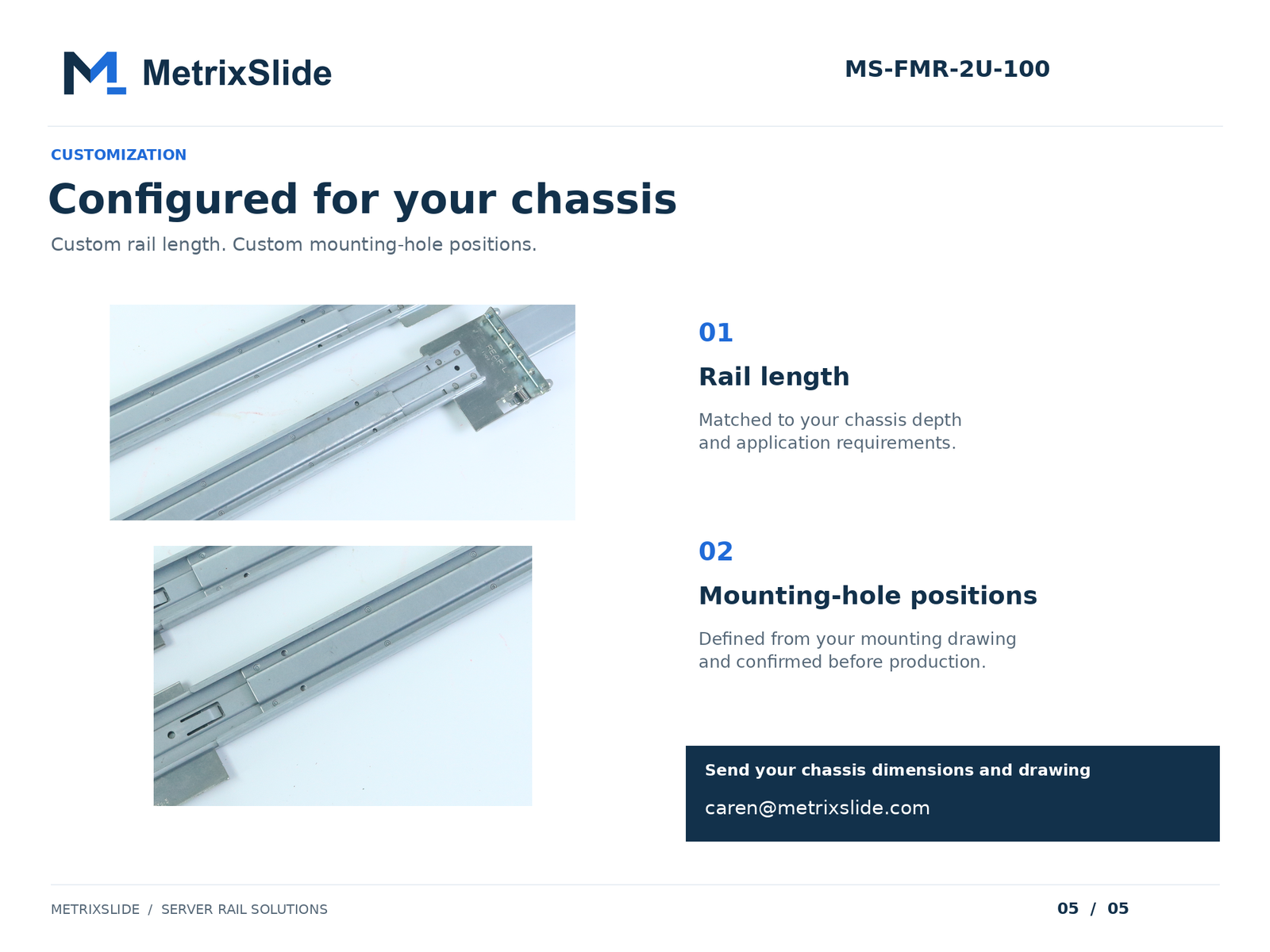

Custom length and hole positions
Once the base rail configuration is selected, we can customize the rail length and mounting-hole positions to suit your chassis. The proposed dimensions and mounting details are reviewed in the drawing stage, followed by sample validation before production.
If a request changes the rail structure or mounting architecture, we assess it as a separate engineering requirement.
Get a rail recommendation
Send these details to get started. If you have a special installation or service-access requirement, include it with your enquiry.
- Chassis length (depth), width and U height
- Total equipment weight, including the chassis
- Mounting-hole drawing, 3D CAD or photos, if available
- Sample quantity and expected order quantity
Product photograph

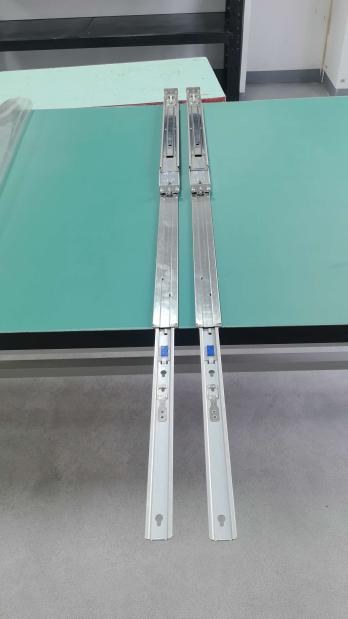

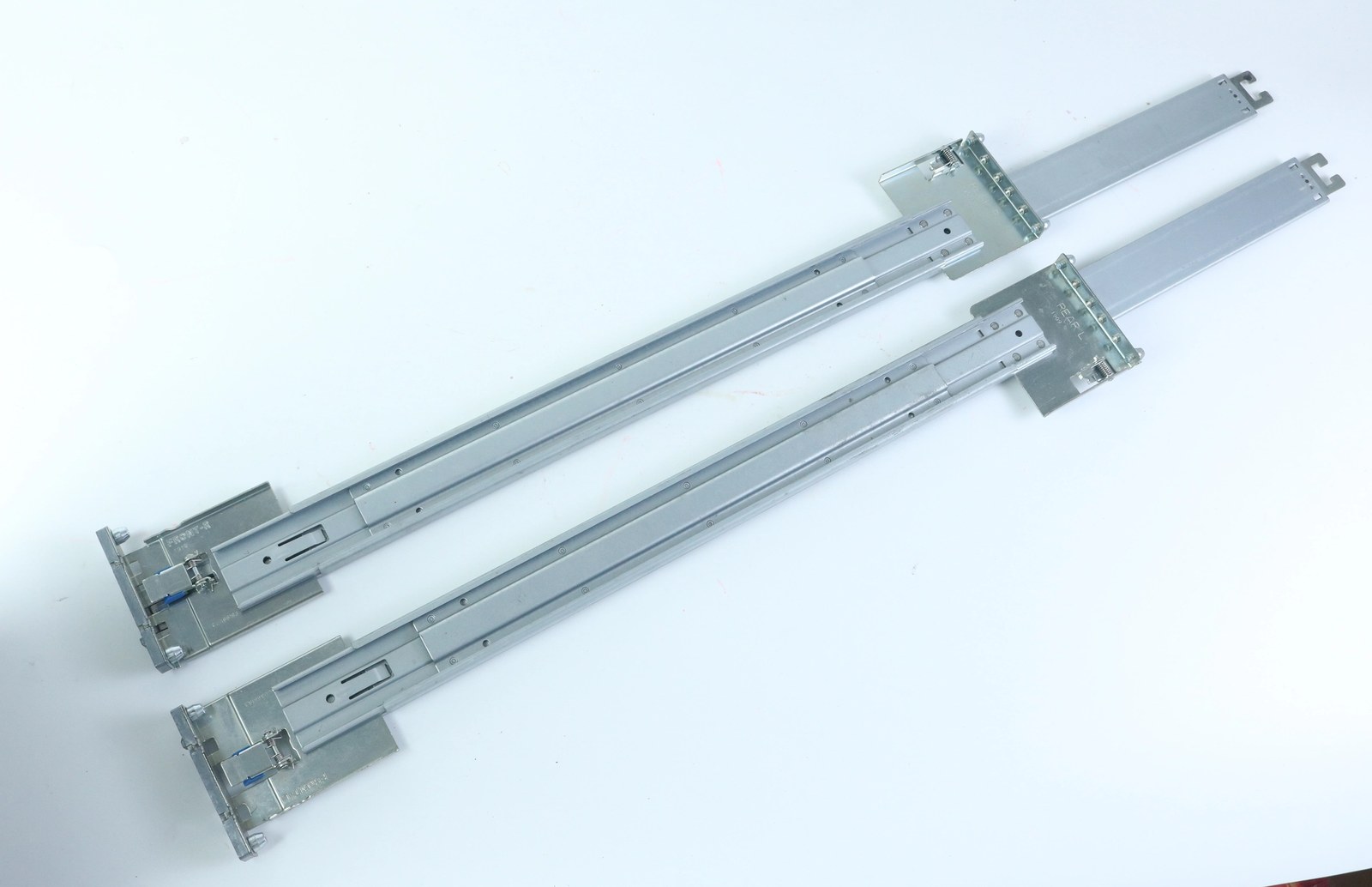

Studio photograph of the actual rail pair, without retouching of the product.
From a production order

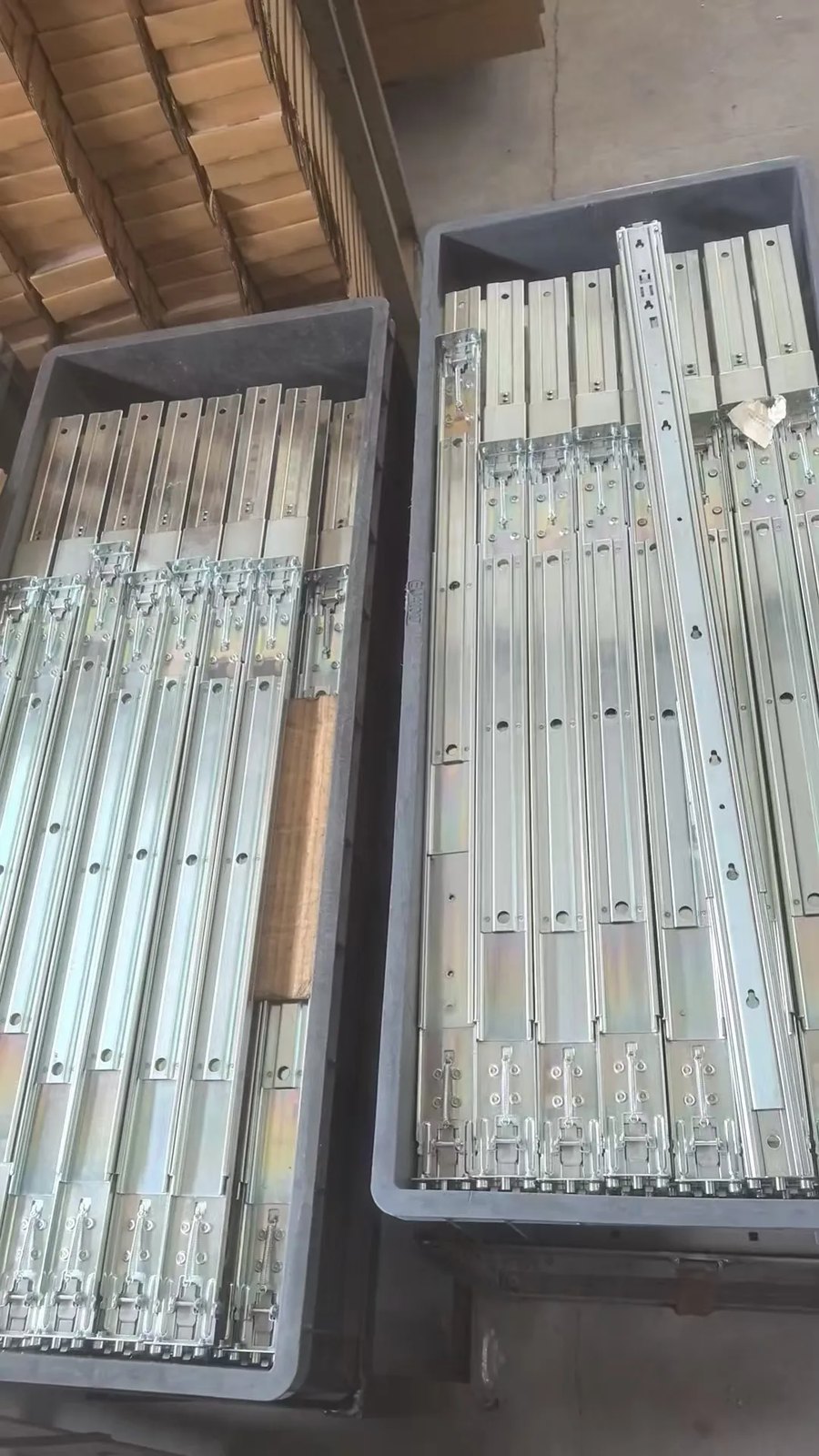

Rail pairs from a production order, in handling bins before packing.
Key Features
100 kg load capacity
One pair of rails held a 100 kg total load, including the chassis, at full extension for 24 hours in the factory static-load test.
For 1U to 4U chassis 436–439 mm wide
Built for 1U to 4U server chassis in standard 19-inch racks. Chassis depth and mounting details are checked against your drawing.
Tool-less installation
The rails install without tools. The rack-side and chassis-side interfaces are confirmed during drawing review.
Friction sliding mechanism
A friction slide rather than a ball-bearing slide.
Custom length and hole positions
Once the base configuration is selected, rail length and mounting-hole positions are matched to your chassis and confirmed by drawing review and sample validation.
Ideal For
- Enterprise 1U–4U servers
- Rackmount storage
- Telecom equipment
- Industrial computers
- Edge computing systems
- Data center cabinets
Applications
- Enterprise Servers
- Rackmount Storage Systems
- Telecom Equipment
- Network Appliances
- Industrial Computers
- Edge Computing Systems
- Data Center Cabinets
- Custom Rack Equipment
Custom & OEM Options
- Rail length
- Mounting-hole positions
- Bracket position, to match your rack
- Private-label branding and packaging
- Structural changes are reviewed as a separate engineering requirement
Package Contents
- 1 pair of MS-FMR-2U-100 server rails
- Mounting accessories as agreed for the project
FAQ
Is this a ball-bearing rail?
No. This model uses a friction sliding mechanism.
What is the load capacity, and how was it tested?
100 kg. In the factory static-load test, one pair of rails held a 100 kg total load, including the chassis, at full extension for 24 hours. The tested rails were 880 mm long with a 438 mm wide chassis. This is an in-house test, not a third-party certification.
Which chassis is this model intended for?
1U to 4U server chassis 436–439 mm wide in standard 19-inch racks. Share the chassis depth and mounting details so we can confirm the rail configuration.
Can the rail length and mounting holes be customized?
Yes. Both can be adapted to the application, with final dimensions confirmed through drawing review.
Can you supply a different rail length?
Yes. We review the required length, mounting details and equipment weight together, then confirm the drawing and sample configuration.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Check the fit for your chassis
Send the chassis depth, width and U height, the total equipment weight including the chassis, and a mounting drawing, CAD file or clear photos. We reply with a rail recommendation within 24 hours.
MS-FMR-2U-100 load test record

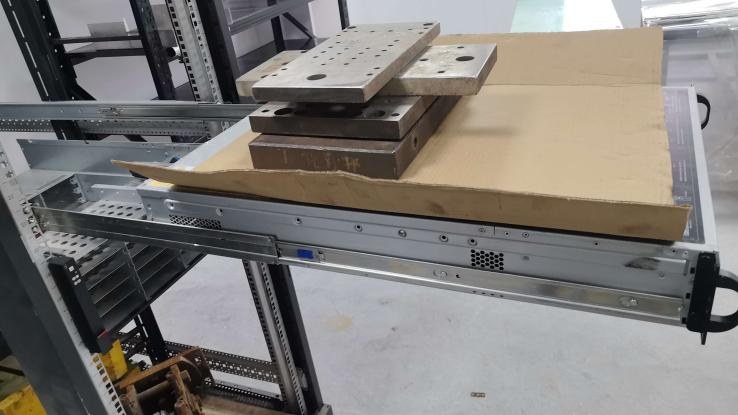

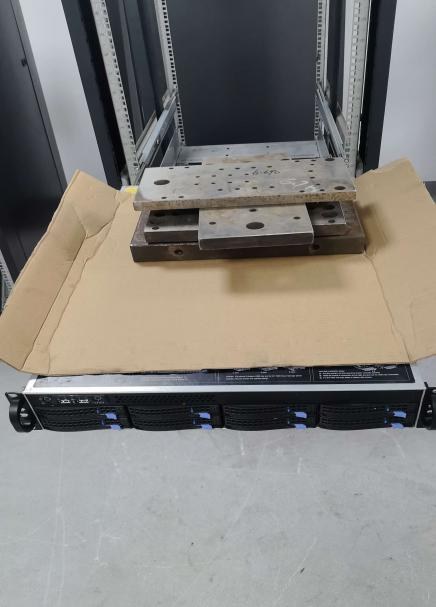

Full-extension static load test, 24 hours, run by the quality inspection department of our manufacturing plant. In-house test, not a third-party certification.
| Test load | 100 kg at the centre of the chassis, chassis weight included |
|---|---|
| Rail position | Fully extended |
| Duration | 24 hours |
| Rail length tested | 880 mm |
| Sample | 1 pair, module sample (pre-production) |
| Result | Pass: no detachment, no jamming, all functions retained |
Download test summary (PDF) All test reports and certificates
