MS-FMR-SW-100 Tool-less Network Switch Rail
SKU MS-FMR-SW-100 · Sliding Rack Rails
3-section friction rail for 19-inch racks and network switches 430–443 mm wide.
MS-FMR-SW-100 Tool-less Network Switch Rail
- Chassis width
- 430–443 mm
- Chassis height
- 1U / 2U / 3U / 4U
- Load capacity
- 100 kg per pair
- Rated; no test report issued
- Rack-side installation
- Tool-less
- Customization
- Length, travel, hole positions and structure, subject to engineering review
- Sliding structure
- Three-section friction
- Rack fit
- 19-inch rack
The MS-FMR-SW-100 is a three-section friction rail for network switches 430–443 mm wide in 19-inch racks, with tool-less rack mounting and a rated load of 100 kg per pair. SPCC cold-rolled steel, zinc plated.
Technical Specifications
Product Summary
A three-section friction rail designed for 19-inch rack applications and network switches 430–443 mm wide, with tool-less rack installation. The width refers to the body of the switch or network device. The rated load is 100 kg per pair; a formal test report for this figure has not been issued, and customized configurations are re-evaluated. The rail is made from SPCC cold-rolled steel with a zinc-plated finish. Equipment-side hole positions and the connection method are checked against your drawing.
Product Details
Select by equipment width
For network switches and rack-mounted network equipment 430–443 mm wide in 19-inch racks, with tool-less rack mounting and a rated load of 100 kg per pair.
Tool-less rack mounting

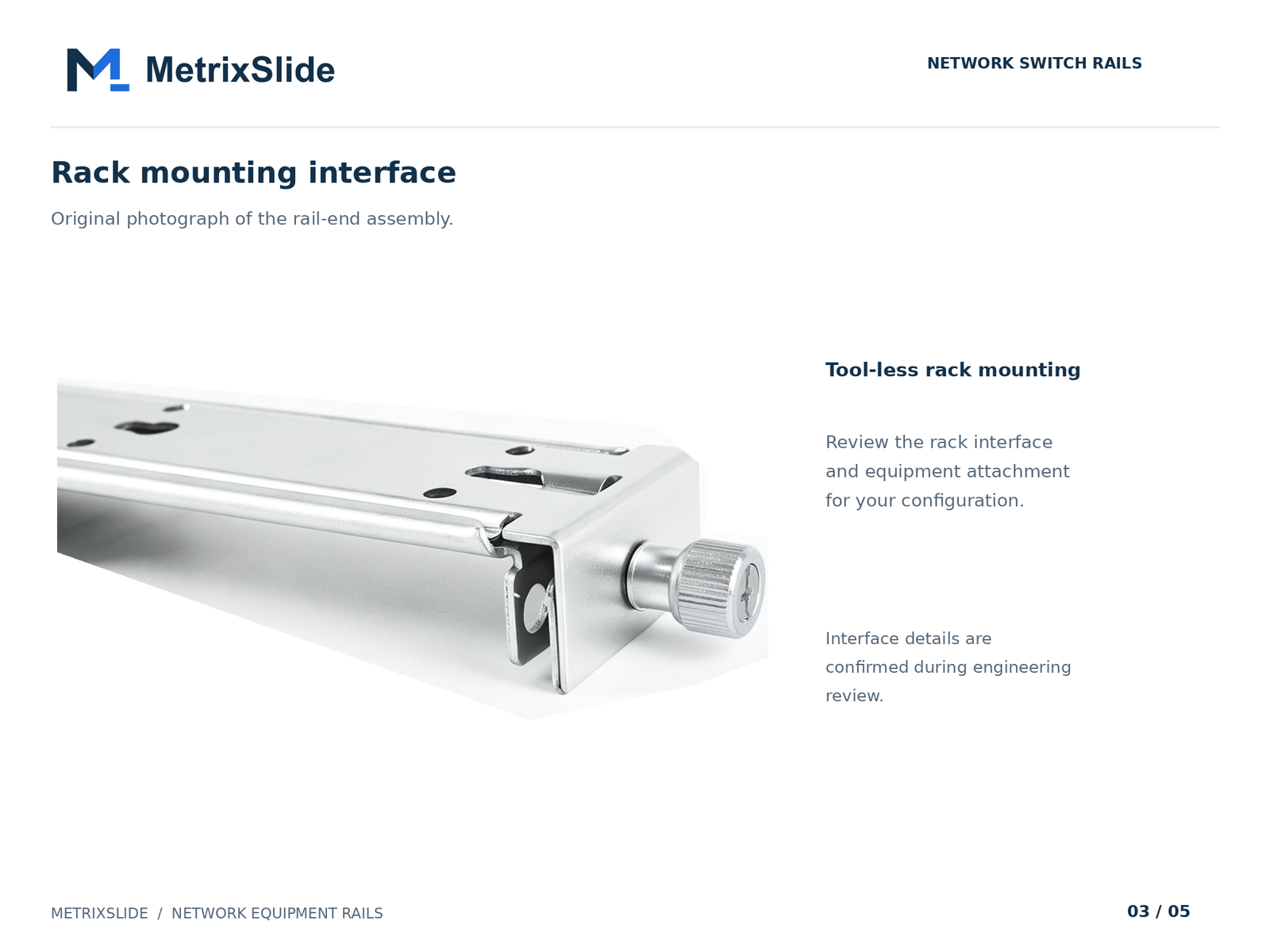

The rail end mounts to the rack without tools. The rack interface and the equipment attachment are reviewed for your configuration.
Three-section friction design

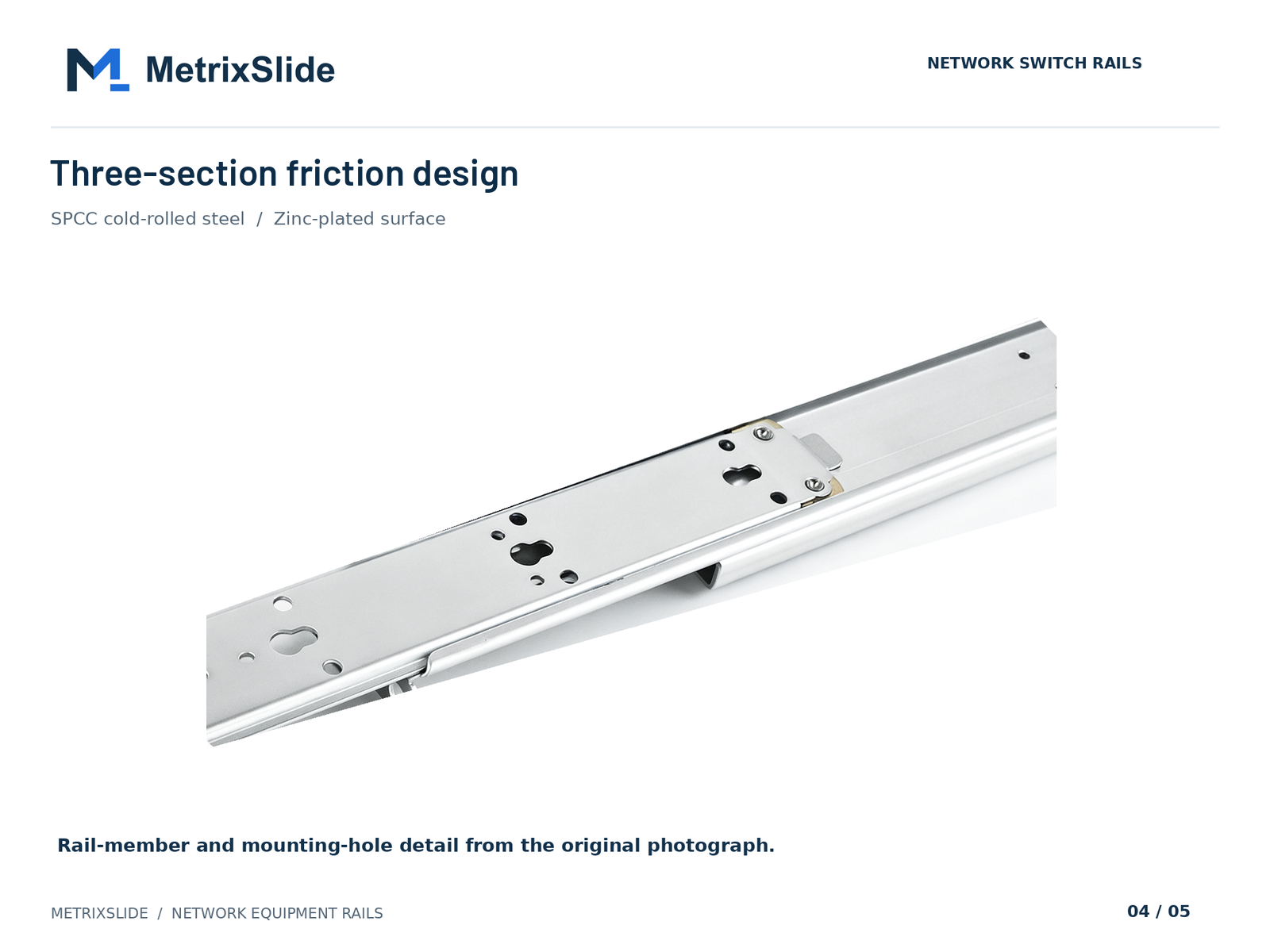

A three-section telescopic rail with a friction sliding mechanism, in SPCC cold-rolled steel with a zinc-plated surface.
Configured around your equipment

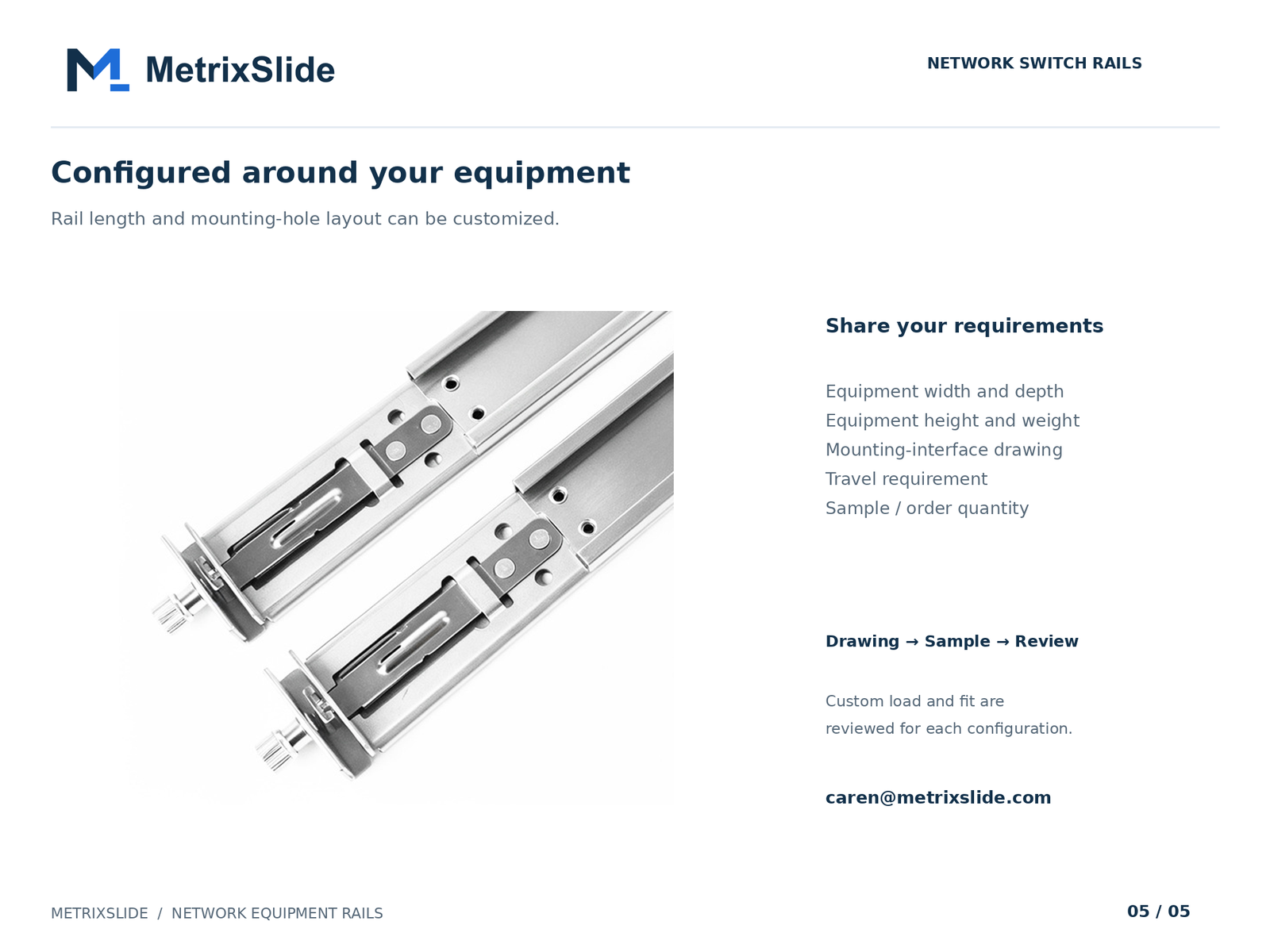

Rail length and mounting-hole layout can be customized. Custom load and fit are reviewed for each configuration, from drawing to sample to review. Share your requirements:
- Equipment width and depth
- Equipment height and weight
- Mounting-interface drawing
- Travel requirement
- Sample and order quantity
Product photograph

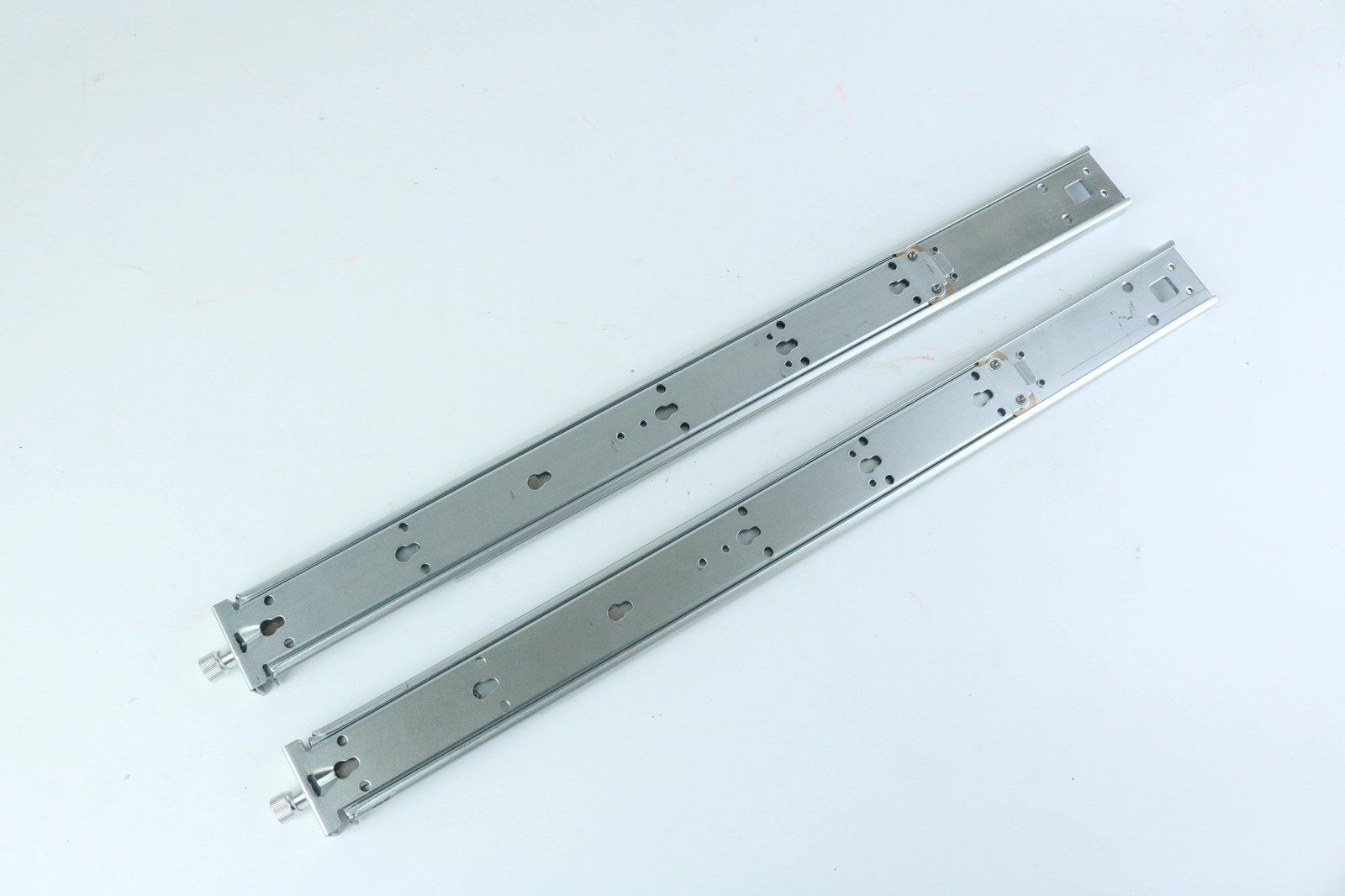

Studio photograph of the actual rail pair, without retouching of the product.
Key Features
100 kg per pair rated load
The rated load is 100 kg per pair. Customized configurations are re-evaluated for the intended load.
For switches 430–443 mm wide
The width refers to the body of the switch or network device. Side clearance is checked against your drawing.
Three-section friction slide
A three-section telescopic rail with a friction sliding mechanism, not ball bearings.
Tool-less rack mounting
The rail mounts to the rack without tools. The equipment-side connection is checked against your drawing.
SPCC cold-rolled steel, zinc plated
Rail members in SPCC cold-rolled steel with a zinc-plated finish.
Ideal For
- Network Switches
- Rack-Mounted Network Equipment
- Telecom Equipment
- Security Appliances
- Data Center Cabinets
- OEM Rack Projects
Applications
- Server Cabinets
- Network Switches
- Telecom Equipment
- Industrial PCs
- Security Appliances
- Data Center Racks
Custom & OEM Options
- Rail length and travel
- Hole positions and spacing
- Material thickness
- Surface finish
- Laser marking and packaging
- All custom items are subject to engineering review
FAQ
What equipment is this rail for?
Network switches and network equipment 430–443 mm wide in 19-inch racks.
What is the rated load?
100 kg per pair. A formal test report for this figure has not been issued; tell us the equipment weight and we review the configuration.
Is this a ball-bearing rail?
No. It uses a three-section friction sliding mechanism.
Does tool-less apply to the equipment side too?
Tool-less describes the rack mounting. The equipment-side hole positions and connection are checked against your drawing.
Which U heights does it fit?
It is listed for equipment in the 1U to 4U height classes. Send the equipment height and mounting-hole positions so we can check the fit.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Check the fit for your switch
Send the chassis depth, width and U height, the total equipment weight including the chassis, and a mounting drawing, CAD file or clear photos. We reply with a rail recommendation within 24 hours.
