MS-TLS-120 Tool-less Ball-Bearing Server Rails
SKU MS-TLS-120 · Sliding Rack Rails
For 1U to 4U servers in standard 19-inch racks. Fits 430–435 mm wide chassis.
MS-TLS-120 Tool-less Ball-Bearing Server Rails
- Chassis width
- 430–435 mm
- Chassis height
- 1U / 2U / 3U / 4U
- Server brands
- Huawei / Dell / HP / Intel
- Load capacity
- 120 kg per pair
- Specified; no test report issued
- Rack-side installation
- Tool-less
- Customization
- Rail length and mounting-hole positions
- Sliding structure
- Ball bearing
- Rack fit
- 19-inch rack
The MS-TLS-120 is a tool-less ball-bearing server rail for 1U to 4U servers in standard 19-inch racks, for chassis 430–435 mm wide, with a specified load capacity of 120 kg per pair. Rail length and mounting-hole positions are customized to your chassis design.
Technical Specifications
Product Summary
MetrixSlide MS-TLS-120 combines ball-bearing sliding with tool-less installation and a specified load capacity of 120 kg per pair. It is intended for 1U to 4U chassis 430–435 mm wide in standard 19-inch racks. Share the chassis depth, width, U height and mounting drawing: we review the rail configuration, bracket adjustment and mounting interfaces before recommending the setup. Provide the total equipment weight, including the chassis and installed components, so we can confirm suitability for your configuration and operating conditions.
Product Details

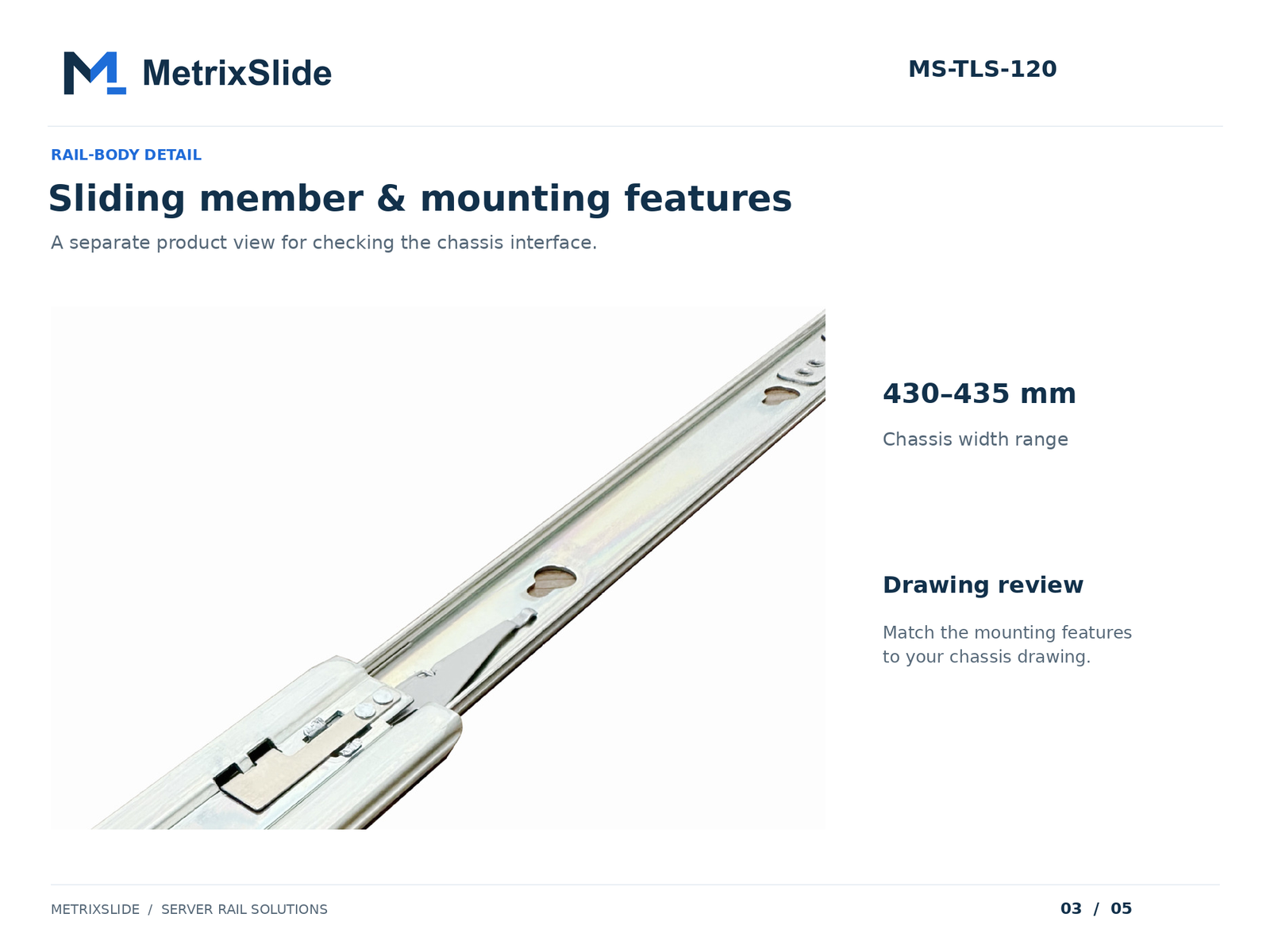

Match the rail to your chassis
Share the chassis depth, width, U height and mounting drawing. We review the rail configuration, bracket adjustment and mounting interfaces before recommending the setup.

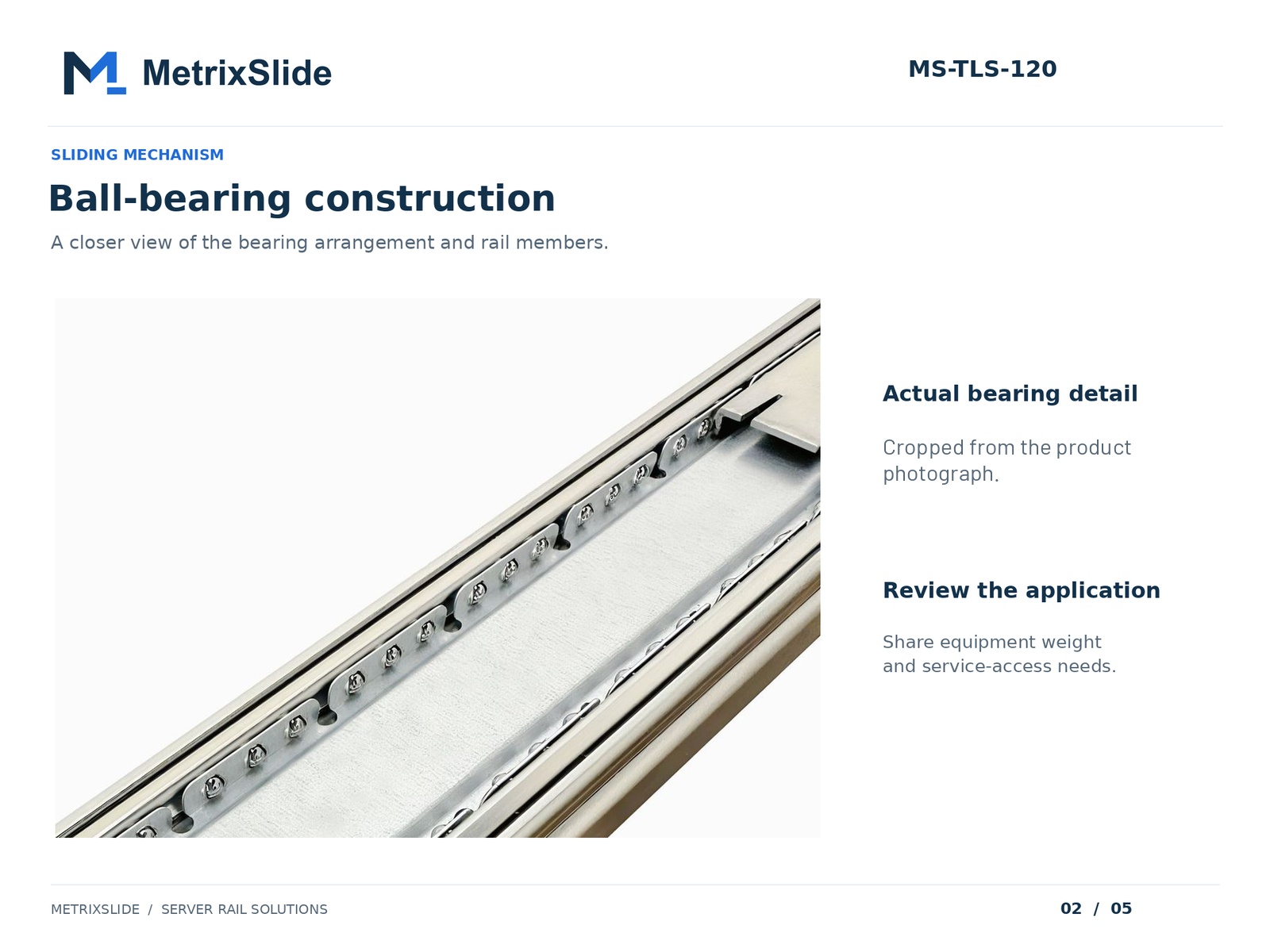

Ball-bearing sliding
MS-TLS-120 runs on a ball-bearing slide. The number of sections and the travel are confirmed on the drawing for your configuration.

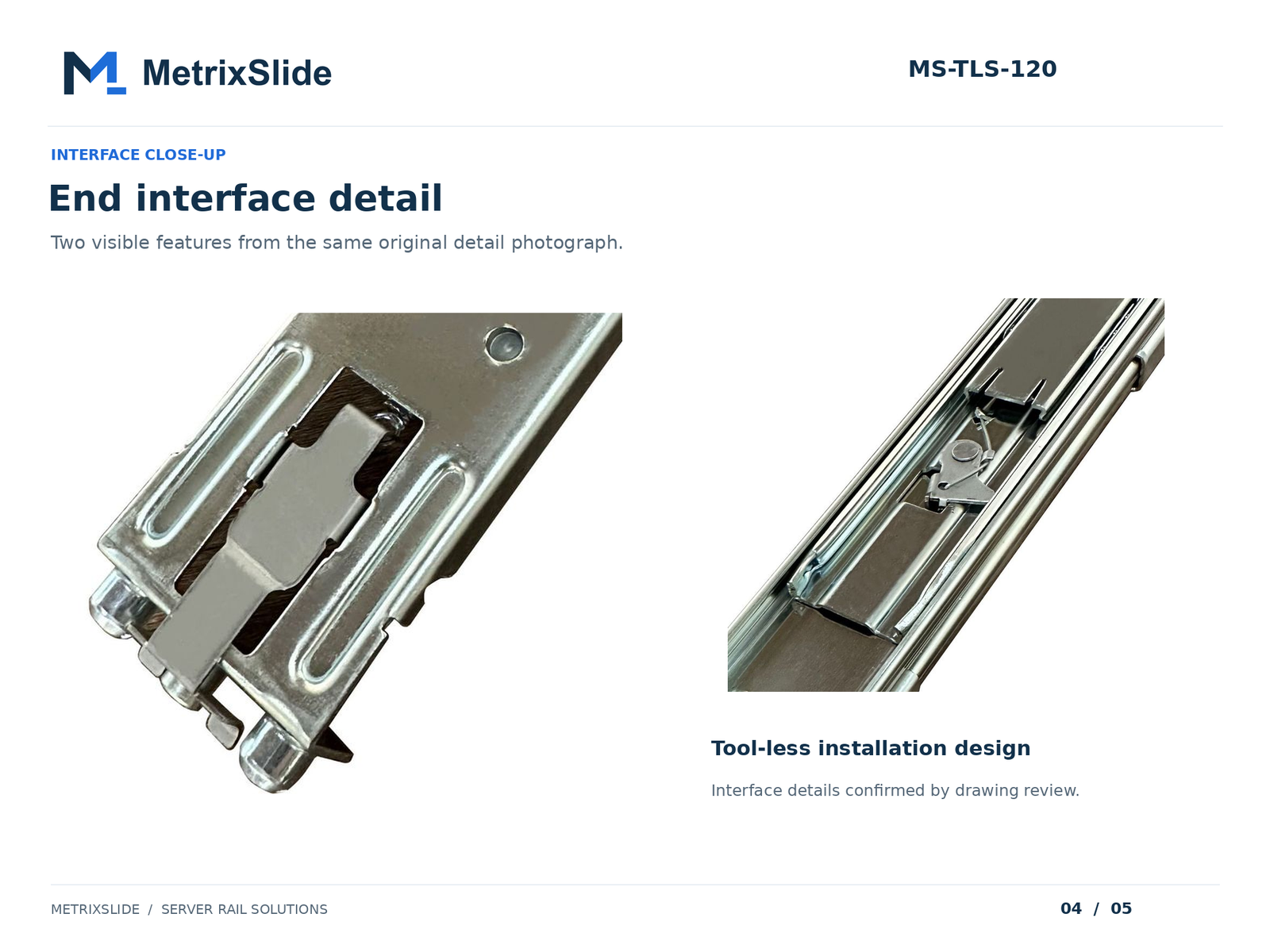

Tool-less installation
The rails install without tools. Rack-side and chassis-side mounting interfaces are reviewed against your drawing.
Custom length and mounting-hole positions
Rail length and mounting-hole positions can be customized. Send your chassis drawing and required dimensions so we can confirm the configuration through drawing review and sample validation.
Load capacity
The specified capacity is 120 kg per pair. Provide the total equipment weight, including the chassis and installed components, so we can confirm suitability for your configuration and operating conditions.
What to send for a recommendation
- Chassis length (depth), width and U height
- Total equipment weight, including the chassis
- Mounting-hole drawing, 3D CAD or photos, if available
- Sample quantity and expected order quantity

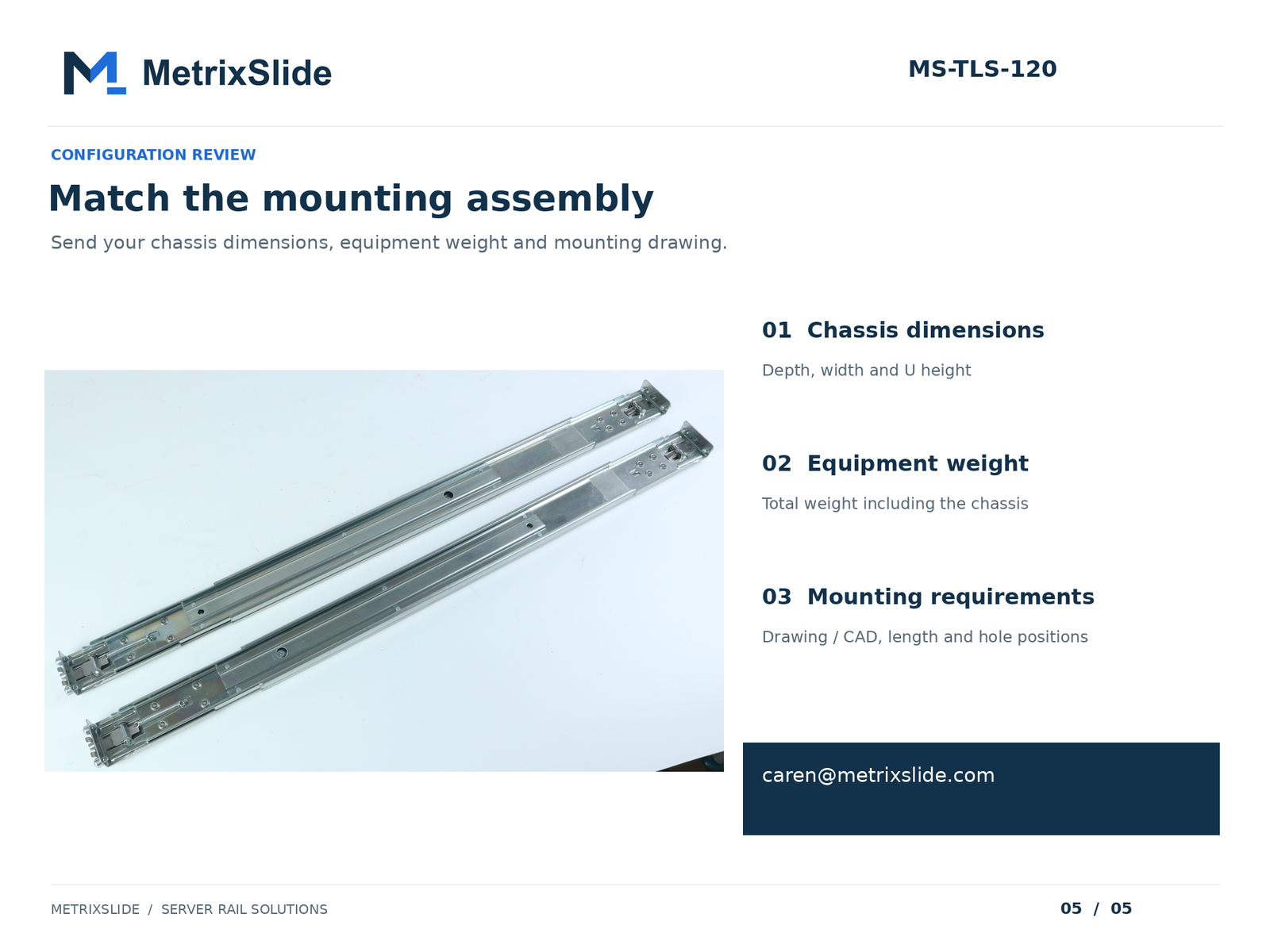

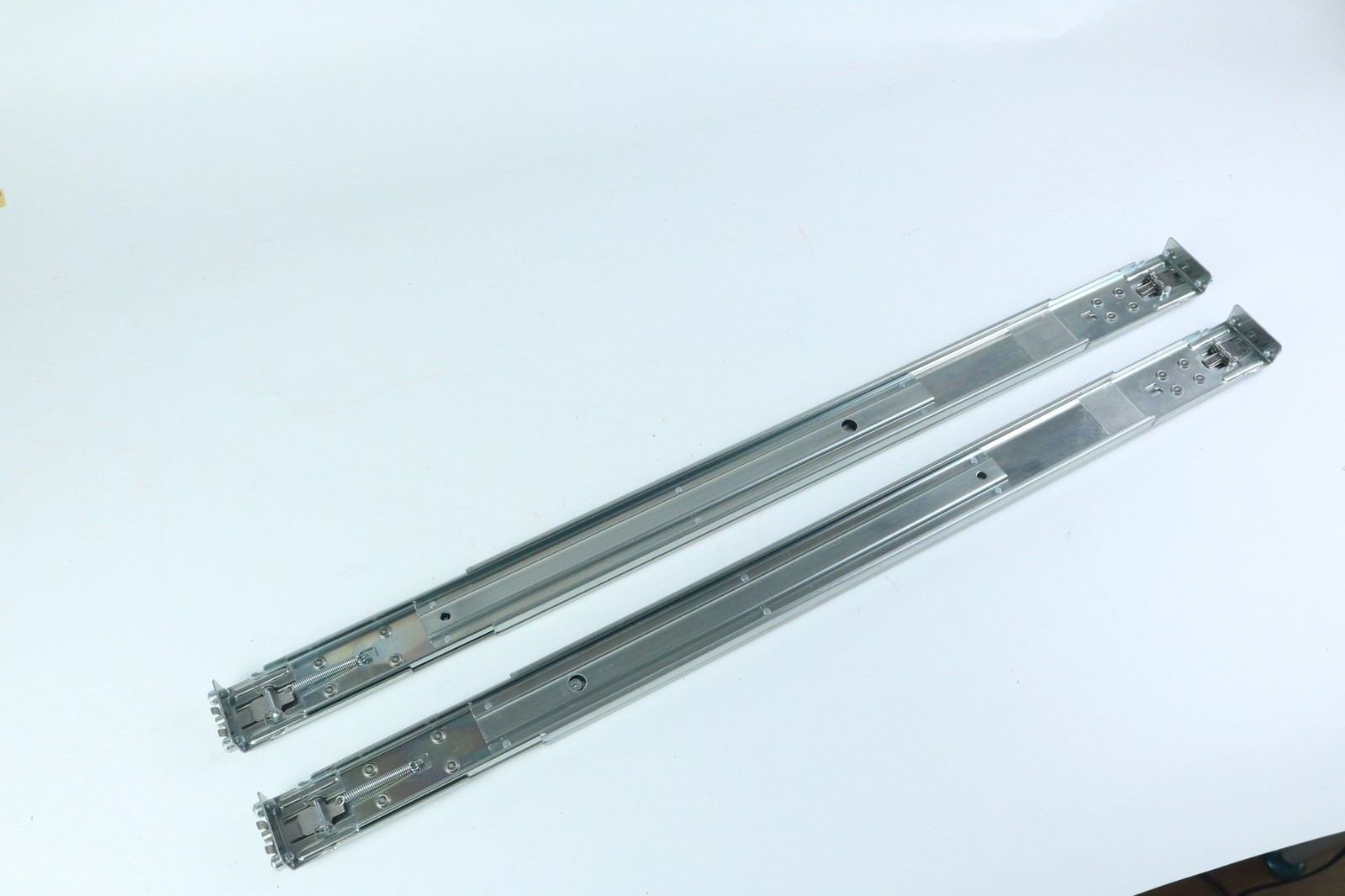

Product photograph
Studio photograph of the actual rail pair, without retouching of the product.
Key Features
120 kg per pair
The specified load capacity is 120 kg per pair. Suitability is confirmed for your configuration and operating conditions.
For 1U to 4U chassis 430–435 mm wide
Fits standard 19-inch racks. Chassis depth and mounting interfaces are reviewed during selection.
Ball-bearing sliding
A ball-bearing slide, not a friction rail.
Tool-less installation
The rails install without tools. Mounting interfaces are reviewed against your drawing.
Custom length and hole positions
Rail length and mounting-hole positions are confirmed through drawing review and sample validation.
Ideal For
- Rack servers
- Storage systems
- Network switches
- Telecom equipment
- Data center infrastructure
- Edge computing devices
Applications
- Rack Servers
- Storage Systems
- Network Switches
- Telecom Equipment
- Data Center Infrastructure
- Industrial Control Systems
- Security Monitoring Equipment
- Edge Computing Devices
Custom & OEM Options
- Rail length
- Mounting-hole positions
- Bracket position, to match your rack
- Private-label branding and packaging
- Structural changes are reviewed as a separate engineering requirement
Package Contents
- 1 pair of MS-TLS-120 server rails
- Mounting accessories as agreed for the project
FAQ
Is this a friction rail?
No. MS-TLS-120 uses a ball-bearing sliding mechanism.
Which racks and chassis sizes does it support?
Standard 19-inch racks with 1U to 4U chassis, 430–435 mm wide. Chassis depth and mounting interfaces are reviewed during selection.
What is the load capacity?
The specified capacity is 120 kg per pair. Tell us the total equipment weight, including the chassis and installed components, and we confirm suitability for your configuration.
Can the length and mounting-hole positions be customized?
Yes. Both can be customized, with final dimensions confirmed by drawing and sample validation.
What should I send for a recommendation?
Chassis depth, width and U height; total equipment weight; a mounting drawing, CAD file or clear photos; sample quantity and expected order quantity.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Match the rail to your chassis
Send the chassis depth, width and U height, the total equipment weight including the chassis, and a mounting drawing, CAD file or clear photos. We reply with a rail recommendation within 24 hours.
Your OEM / ODM Server Rail Manufacturer
MetrixSlide designs and manufactures high-load server rail systems for AI infrastructure, GPU servers, liquid-cooled platforms and enterprise data centers — supporting customers from prototype development to bulk production.
- 3,000,000+ rail sets produced annually
- In-house stamping, roll forming & tooling
- 40–180kg load engineering support
- ISO 9001 quality management system
- OEM / ODM private-label & custom development
- Global export & project support
