MS-FMR-1U2U-115 Tool-less Friction Server Rails
SKU MS-FMR-1U2U-115 · Sliding Rack Rails
For 1U to 4U servers in 19-inch racks, with a maximum chassis width of approximately 439 mm.
MS-FMR-1U2U-115 Tool-less Friction Server Rails
- Chassis width
- Up to approx. 439 mm
- Chassis height
- 1U / 2U / 3U / 4U
- Server brands
- Huawei / Dell / HP / Intel
- Load capacity
- 115 kg per pair
- Specified; no test report issued
- Rack-side installation
- Tool-less
- Customization
- Rail length and mounting-hole positions
- Sliding structure
- Friction

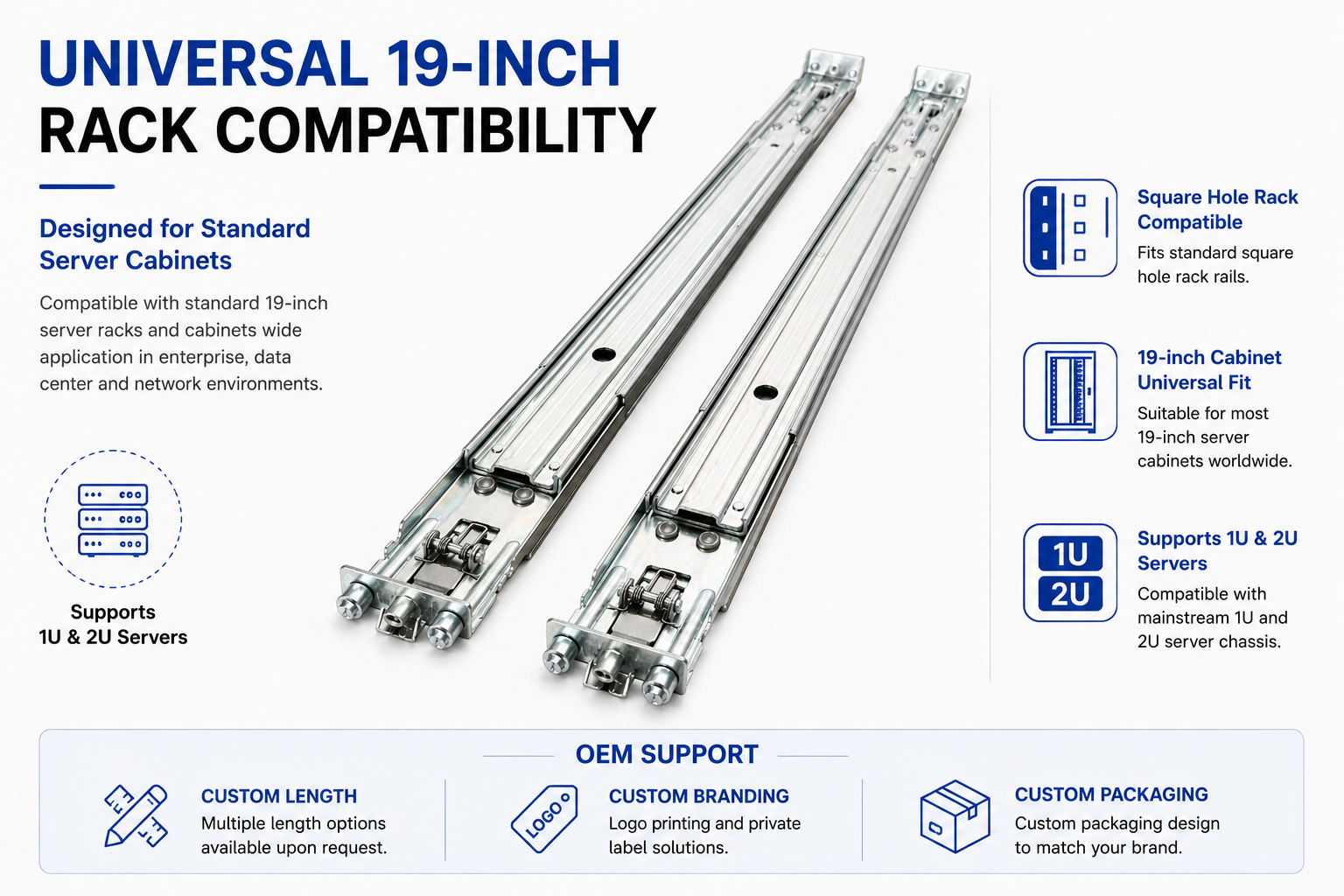

- Rack fit
- 19-inch rack
The MS-FMR-1U2U-115 is a tool-less friction server rail for 1U to 4U servers in 19-inch racks, for chassis up to approximately 439 mm wide, with a specified load capacity of 115 kg per pair. Rail length and mounting-hole positions are customized to your chassis.
Technical Specifications
Product Summary
MetrixSlide MS-FMR-1U2U-115 combines friction sliding with tool-less installation and a specified load capacity of 115 kg per pair. The approximately 439 mm maximum chassis width is an upper limit, not a guarantee of fit for every narrower chassis: mounting features, chassis depth and the rack interface must also match. Provide the chassis depth, width and U height together with an interface drawing or clear photos, and our team reviews the rail and bracket configuration against your application. The proposed arrangement is confirmed by drawing review and sample validation before production.
Product Details
Load and dimensional fit
The specified capacity is 115 kg per pair. The approximately 439 mm maximum chassis width is an upper limit, not a guarantee of fit for every narrower chassis. Mounting features, chassis depth and the rack interface must also match.

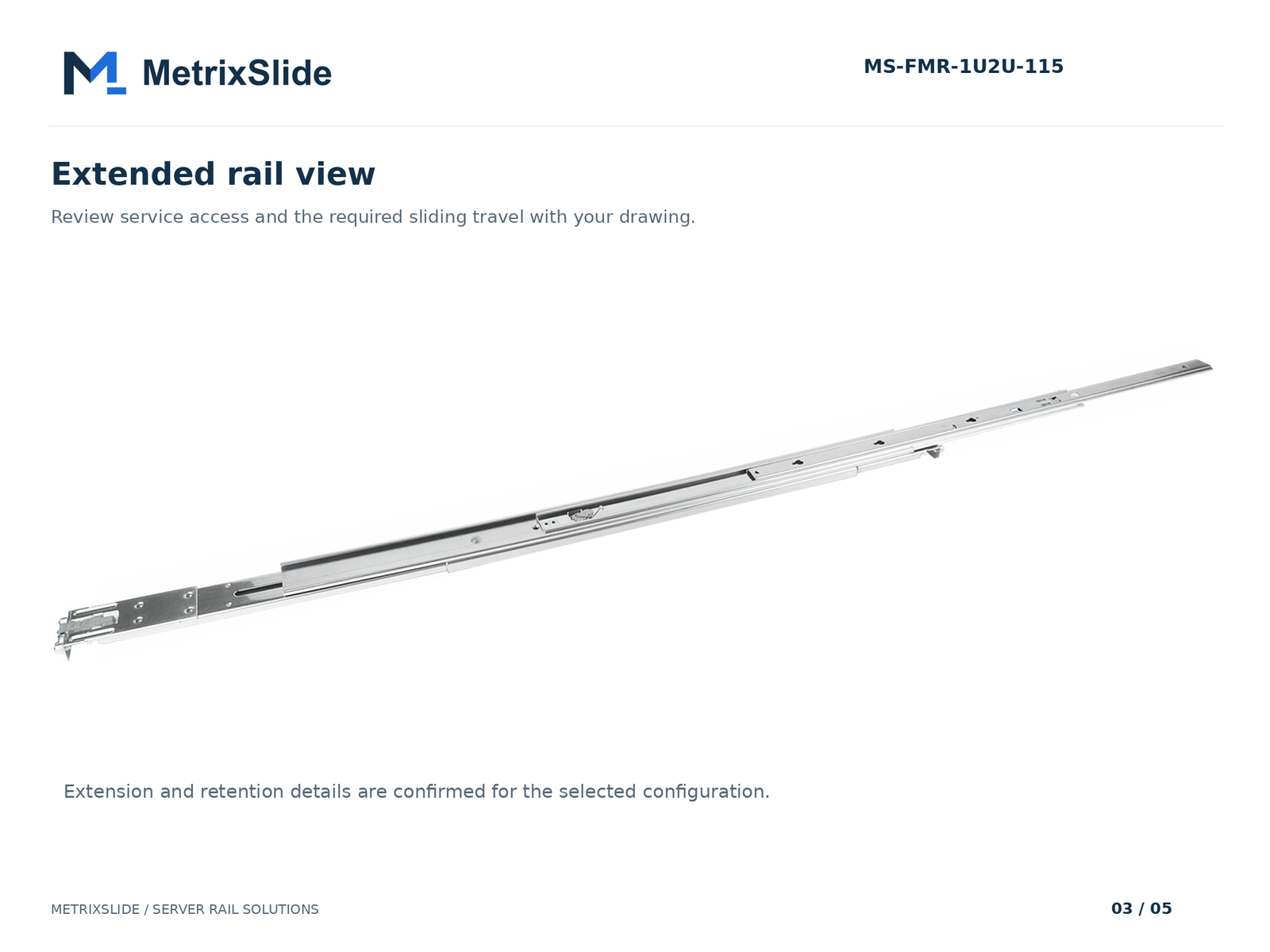

Review mounting and service access
The mounting features and the required outward travel need to suit the equipment. Confirm the proposed arrangement by drawing review and sample validation before production.

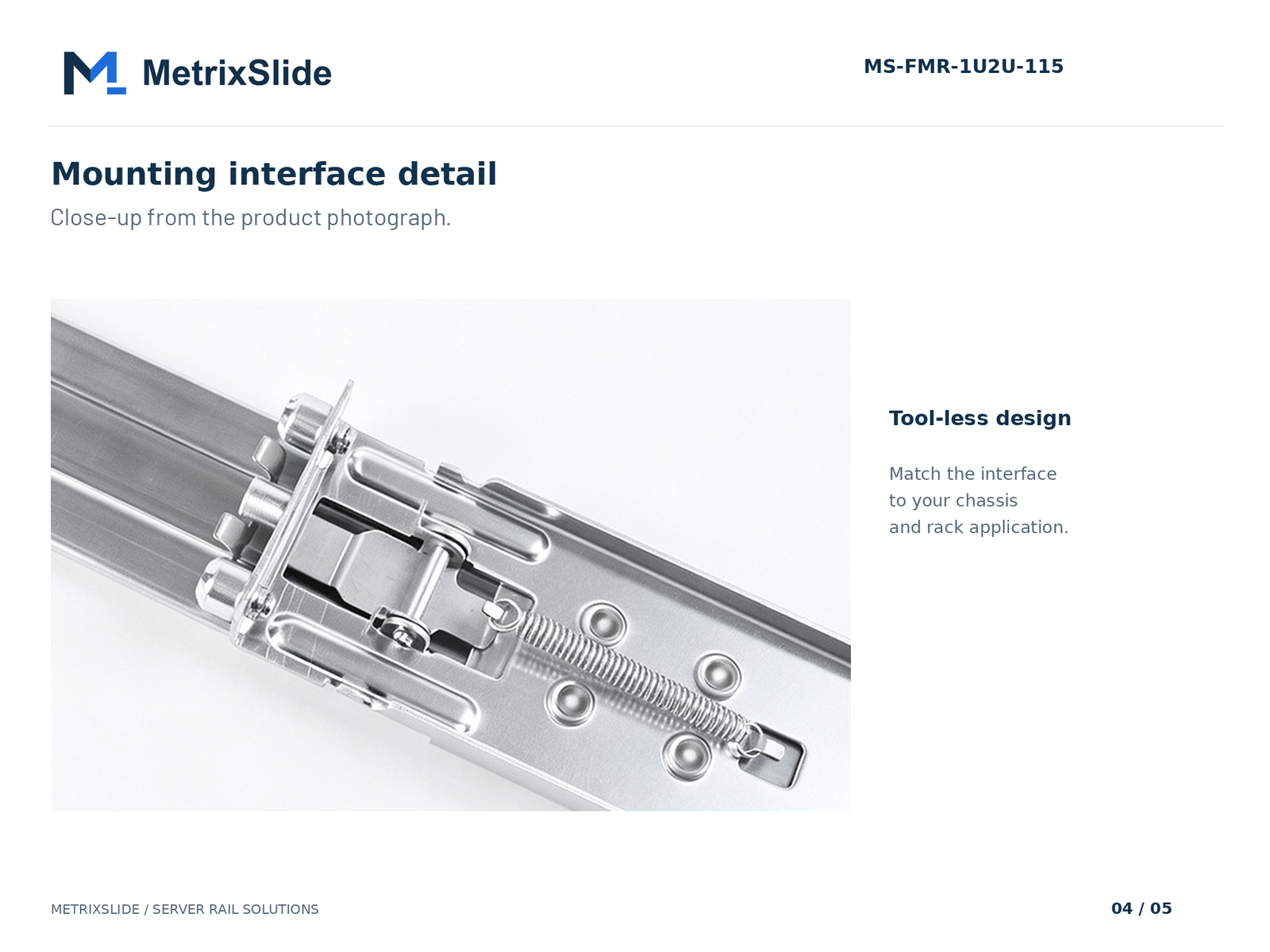

Tool-less mounting interface
The rails install without tools. The rack-side and chassis-side interfaces are reviewed for your application.

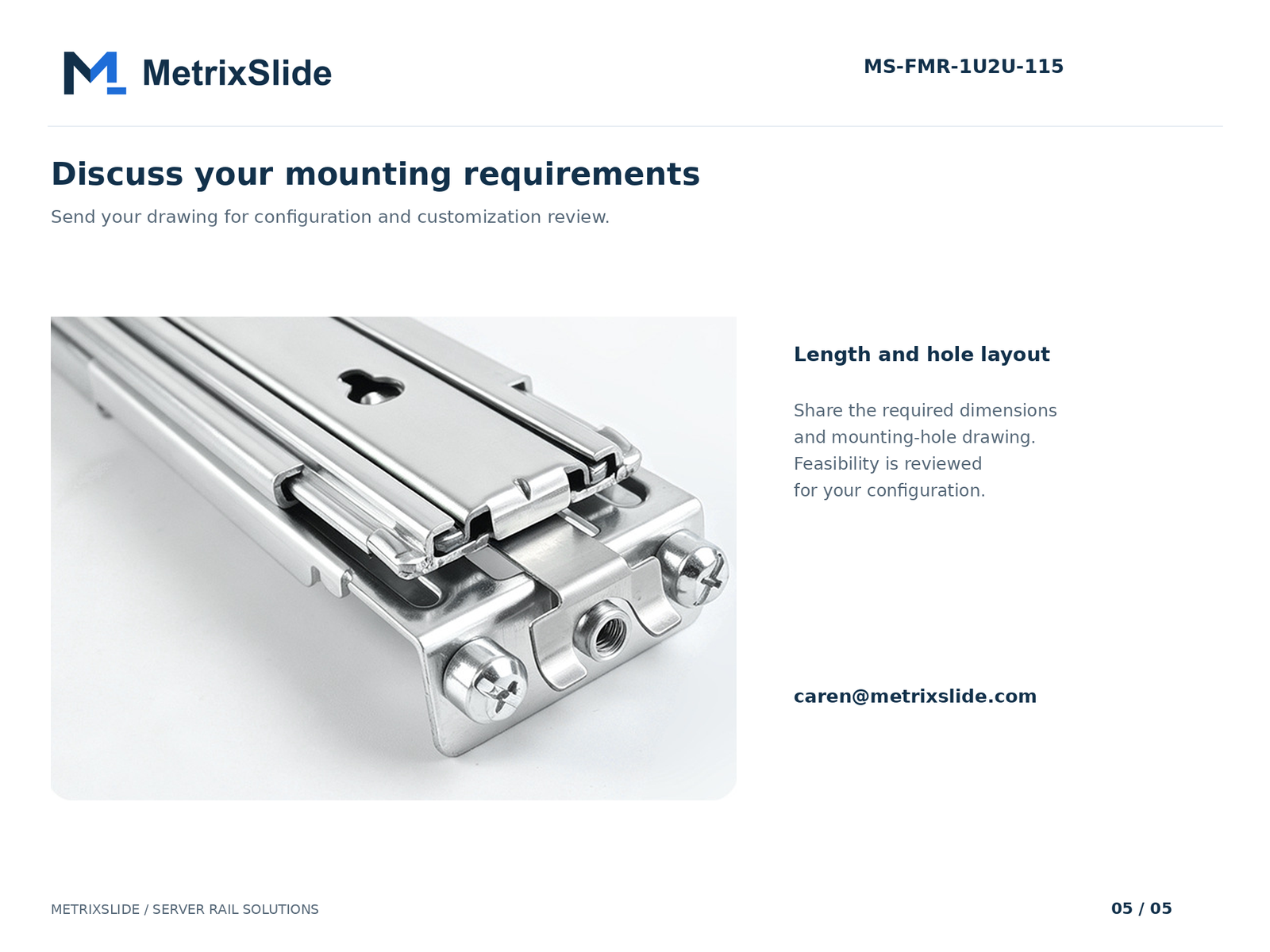

Custom rail length and mounting-hole positions
Rail length and mounting-hole positions can be customized to suit your chassis. Send your required dimensions and mounting drawing; final dimensions are confirmed through drawing review and sample validation.

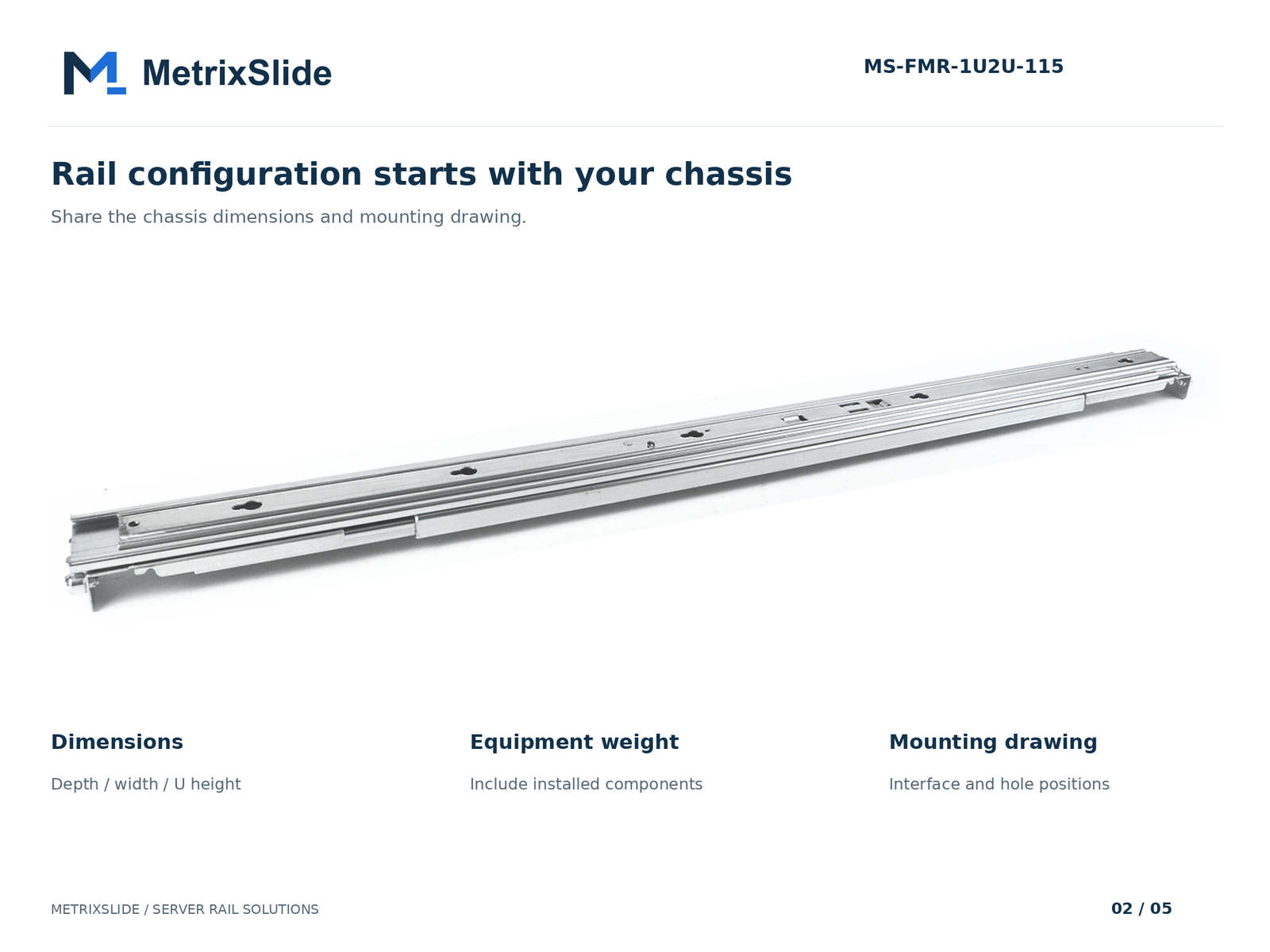

Start with the chassis
Provide the chassis depth, width and U height, together with an interface drawing or clear photos. Our team reviews the rail and bracket configuration against your application.

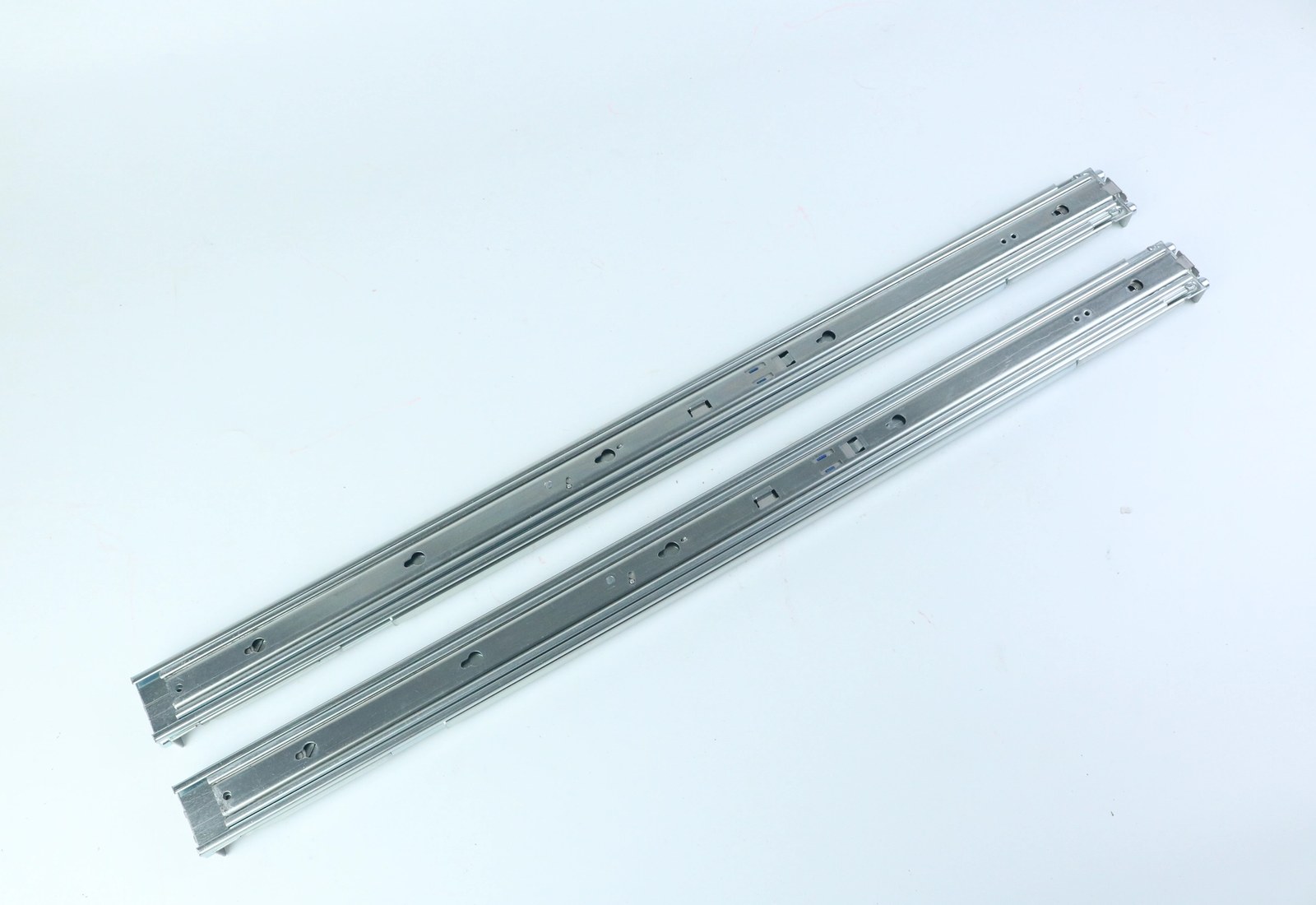

Product photograph
Studio photograph of the actual rail pair, without retouching of the product.
Key Features

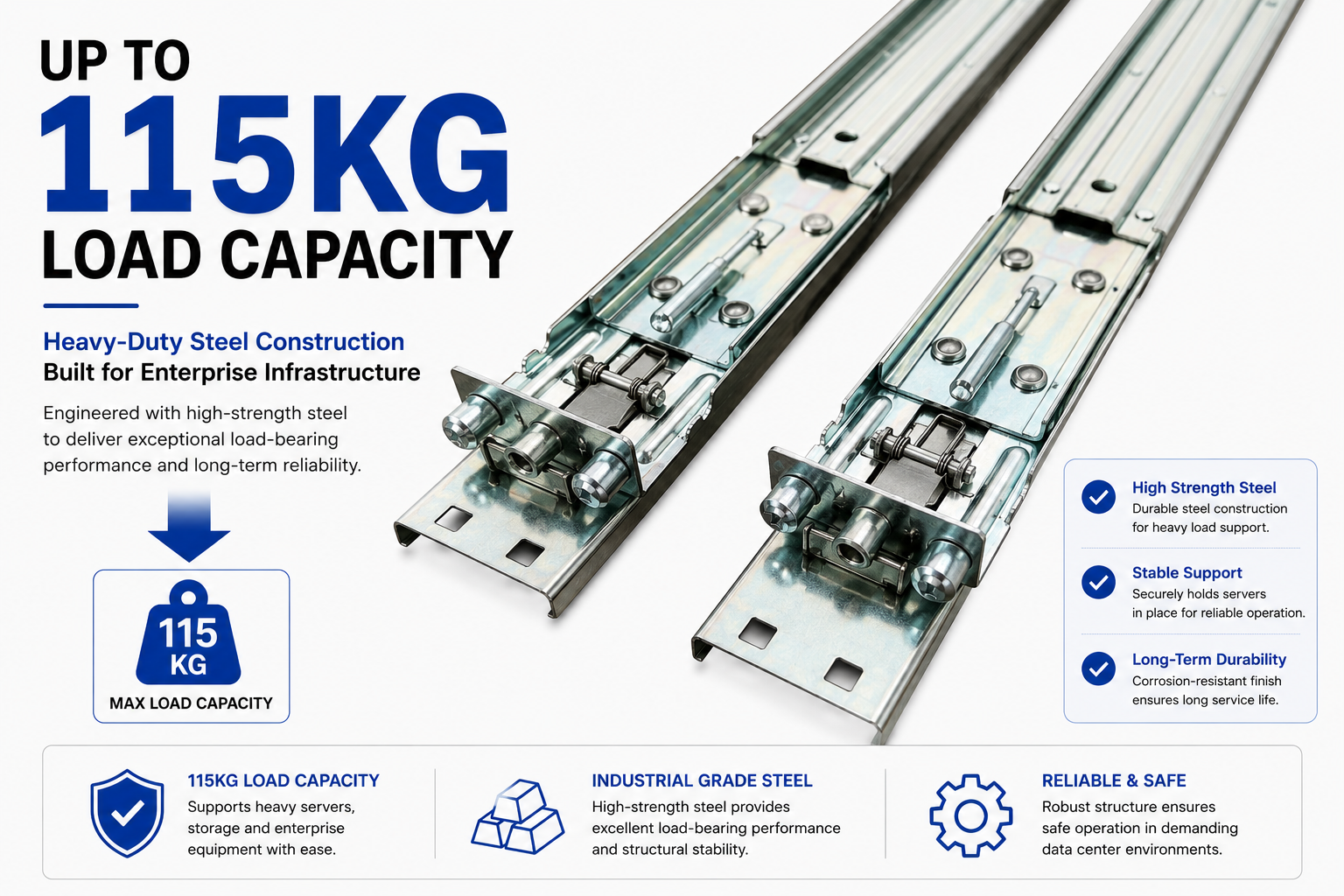

115 kg per pair
The specified load capacity is 115 kg per pair. Suitability and operating conditions are confirmed for the selected configuration.
For 1U to 4U chassis up to 439 mm wide
Approximately 439 mm is the upper limit for chassis width. Mounting features, chassis depth and the rack interface are checked as well.

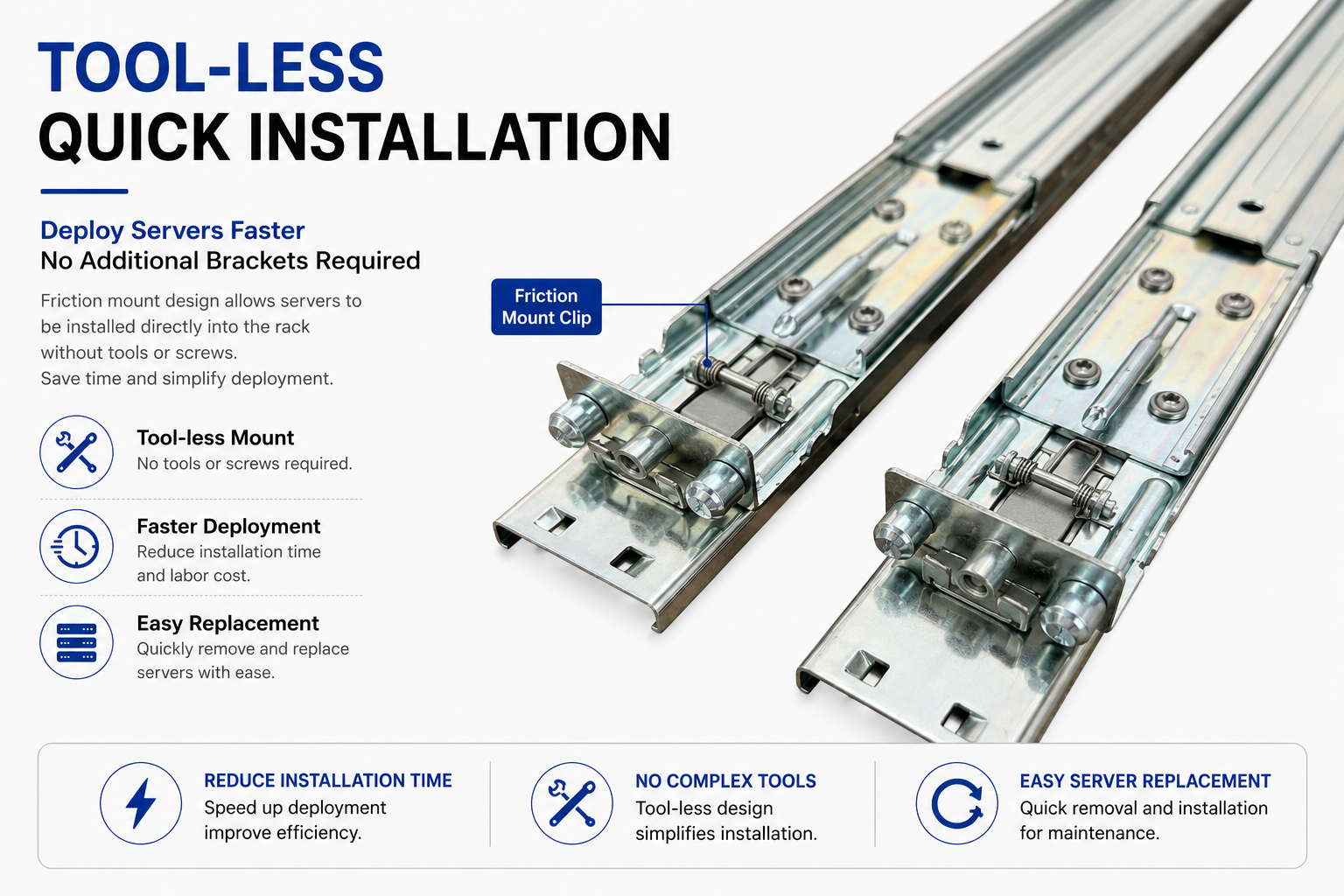

Tool-less installation
The rails install without tools. Rack-side and chassis-side interfaces are reviewed for your application.
Friction sliding mechanism
A friction slide rather than a ball-bearing slide.
Custom length and hole positions
Final dimensions are confirmed through drawing review and sample validation.
Ideal For
- 1U to 4U Rack Servers
- AI Servers
- Storage Servers
- Enterprise Servers
- Network Appliances
- Telecom Equipment
- Industrial Computers
- OEM Server Manufacturers
- Data Center Projects
Applications
- Data Centers
- Enterprise IT Infrastructure
- Telecom Systems
- Industrial Computing
- OEM Server Integration
Custom & OEM Options
- Rail length
- Mounting-hole positions
- Bracket position, to match your rack
- Private-label branding and packaging
- Structural changes are reviewed as a separate engineering requirement
Compatible Equipment
- 1U to 4U Servers
- Storage Servers
- AI Servers
- Edge Computing Servers
- Enterprise Servers
- Network Appliances
- Telecom Systems
- Industrial PCs
- OEM Rack Solutions
FAQ
Does this rail use ball bearings?
No. This model uses a friction sliding mechanism.
Will matching the chassis width alone guarantee a fit?
No. The chassis depth, mounting features and rack-side interface also need to match.
What information is needed for load selection?
The total weight of the chassis and installed equipment, together with the intended operating and service conditions.
Can I submit a custom length or mounting-hole drawing?
Yes. Both rail length and mounting-hole positions can be customized. Send your drawing so we can confirm the dimensions for your configuration.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Start with your chassis
Send the chassis depth, width and U height, the total equipment weight including the chassis, and a mounting drawing, CAD file or clear photos. We reply with a rail recommendation within 24 hours.
