MS-FIX-80 Fixed Rack Support Brackets
SKU MS-FIX-80 · Fixed Rack Rails
Screw-mounted fixed bottom-support brackets for standard 19-inch racks.
MS-FIX-80 Fixed Rack Support Brackets
- Chassis width
- 430–448 mm (four width classes)
- Chassis height
- 1U / 2U / 3U / 4U
- Server brands
- Huawei / Dell / HP / Intel
- Load capacity
- 80 kg per pair
- Base rating; family configurations 80–180 kg per pair
- Rack-side installation
- Screw-mounted
- Customization
- Support length
- Sliding structure
- Fixed bottom support, non-sliding
- Rack fit
- 19-inch rack
The MS-FIX-80 is a screw-mounted fixed bottom-support bracket for standard 19-inch racks, with a base load rating of 80 kg per pair and family configurations from 80 to 180 kg per pair. It is a non-sliding support, and the support length can be customized.
Technical Specifications
Product Summary
MS-FIX-80 brackets give fixed bottom support for rack-mounted equipment in standard 19-inch racks. They are screw-mounted and do not slide: the equipment rests on the brackets and is removed from the rack for service. The base load rating is 80 kg per pair. The family covers configurations from 80 to 180 kg per pair, and the 180 kg figure applies to the corresponding configuration only, not to the whole family. The brackets are made from cold-rolled steel with an electroplated finish, and the support length can be customized. Send the equipment width, depth, height and weight, and we confirm the load configuration and the fit before ordering.
Product Details
Fixed bottom support for rack-mounted equipment

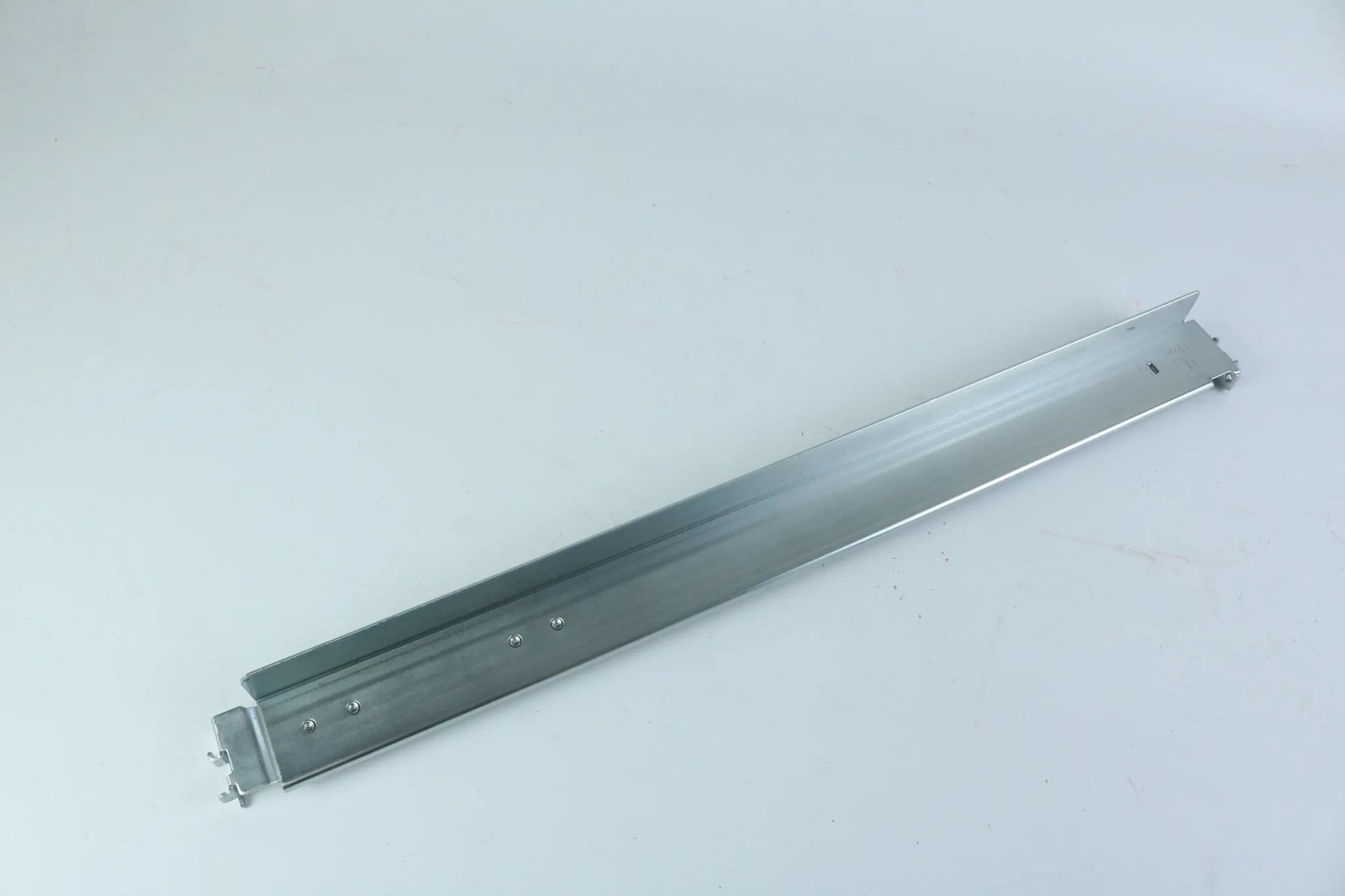

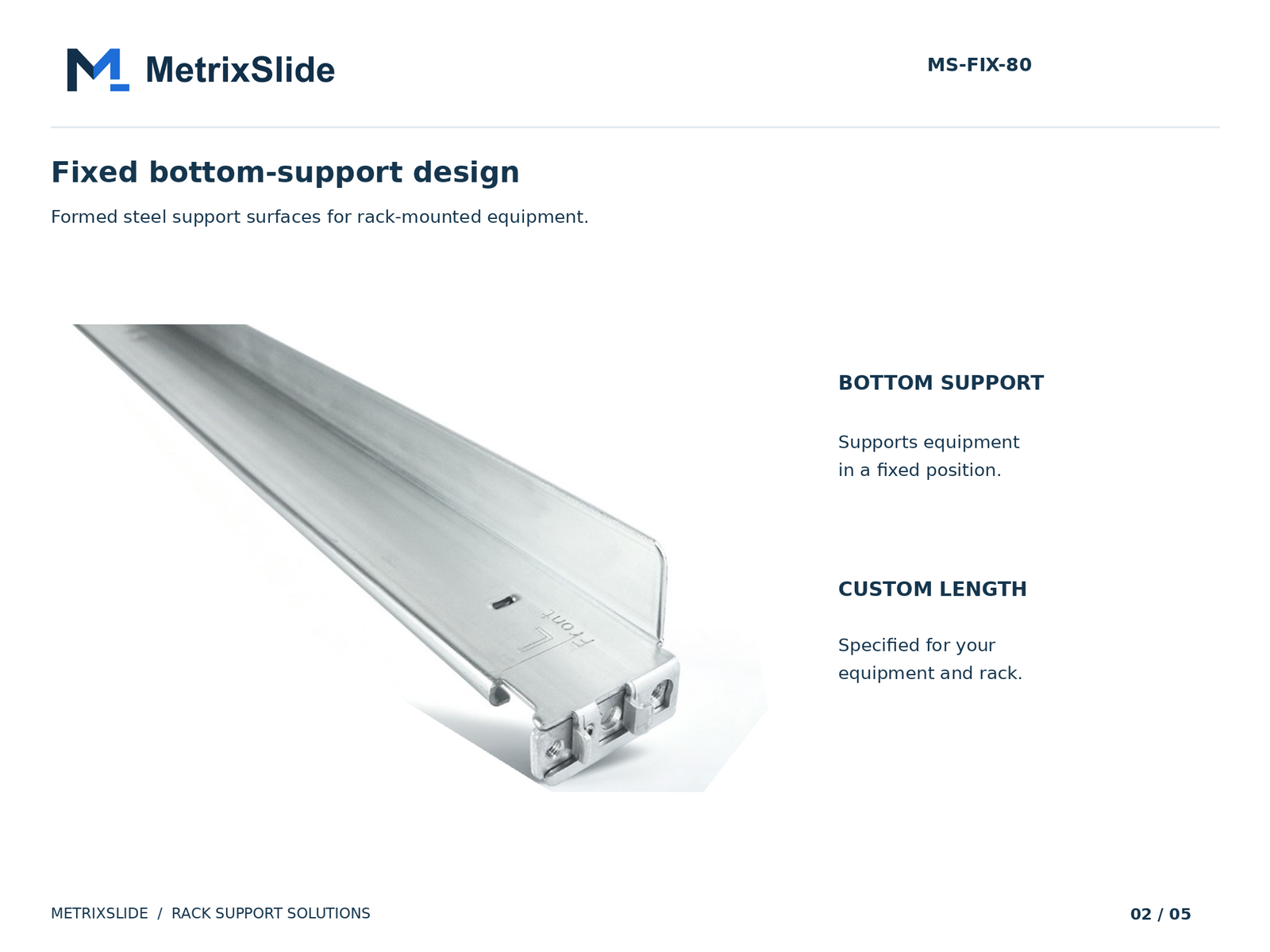

Formed steel support surfaces carry the equipment from below in a fixed position. MS-FIX-80 is for applications that need stationary support rather than pull-out service access. Check the support dimensions and mounting interfaces against the equipment and rack drawings before selection.
Select the required load capacity

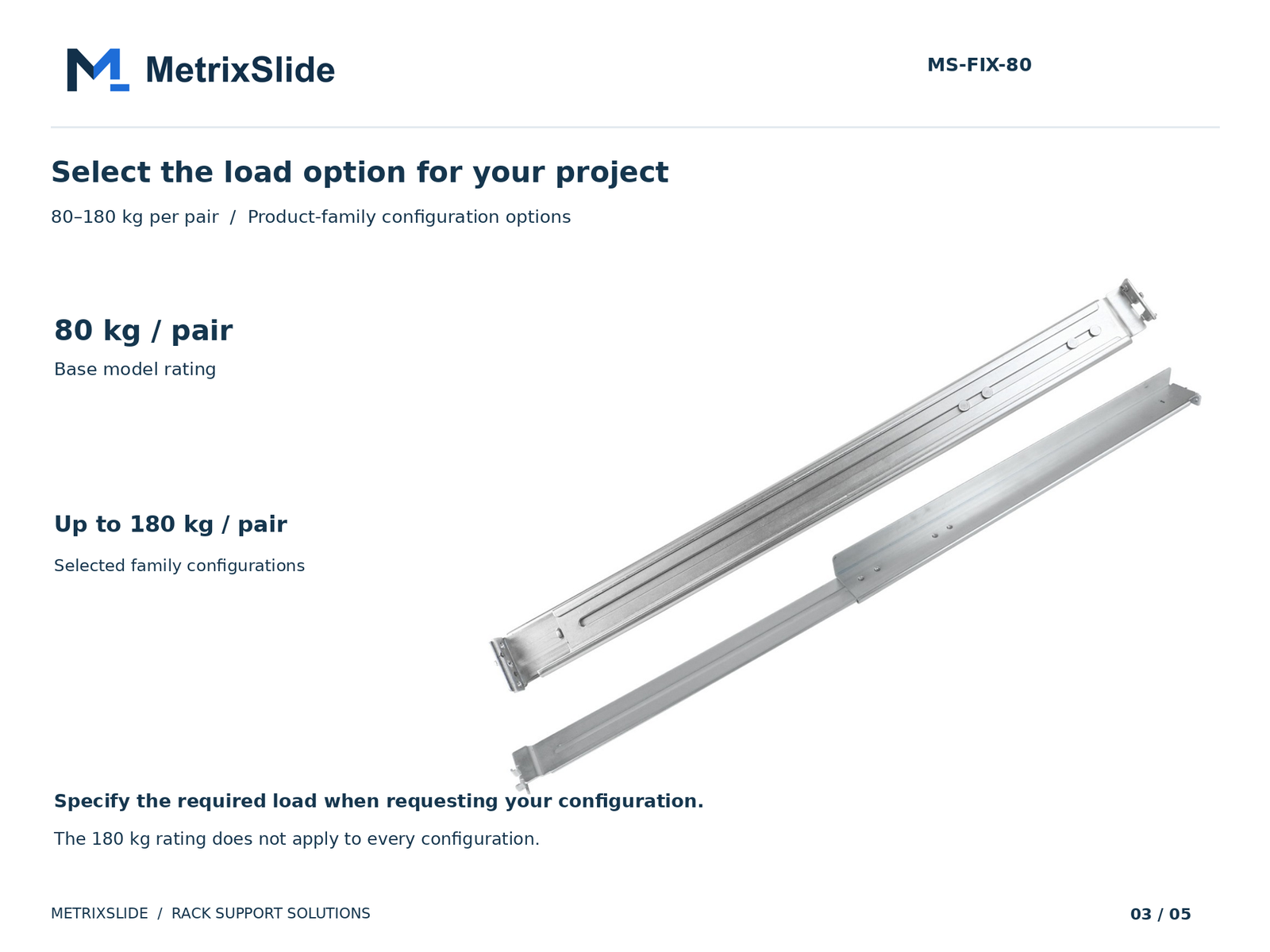

The base model is rated 80 kg per pair. The product family has higher-capacity configurations up to 180 kg per pair. State the total equipment weight when you ask for a recommendation, so the configuration matches the load. The 180 kg rating does not apply to every configuration.

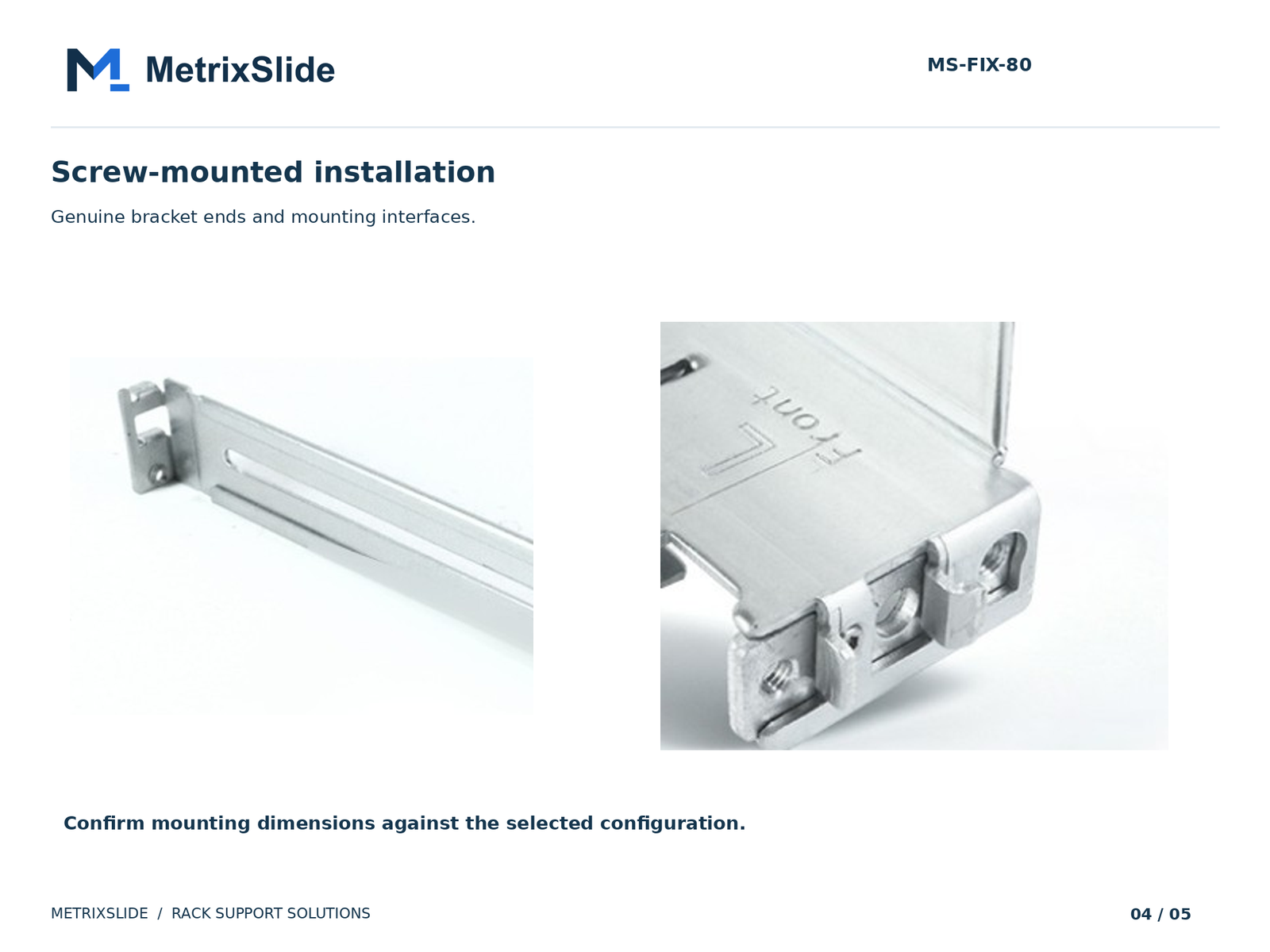

Screw-mounted installation
The brackets attach to the rack mounting points with screws. Mounting-hole positions and support dimensions must suit the rack and the equipment. Share drawings or clear mounting photos for a compatibility review.

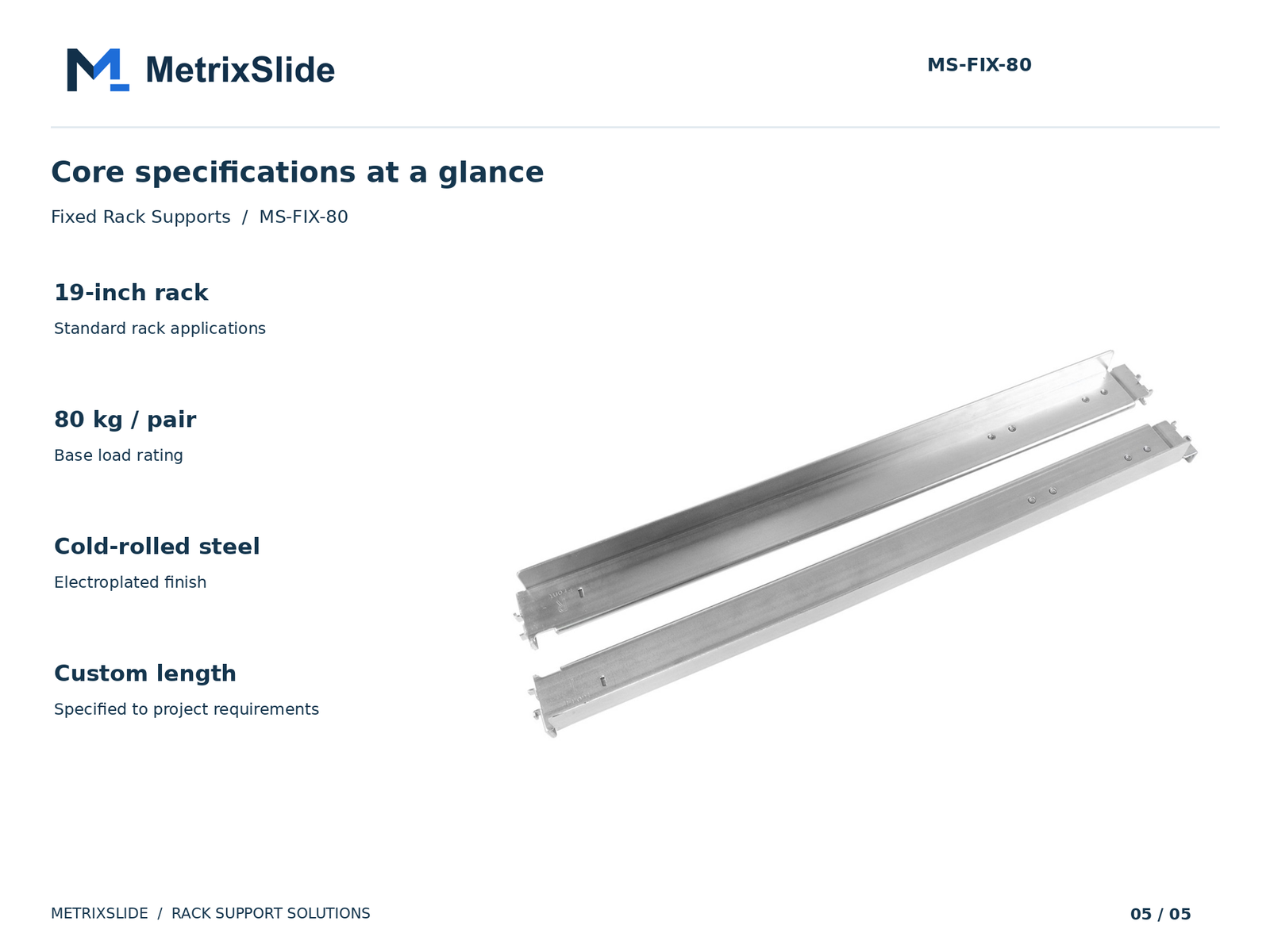

Electroplated cold-rolled steel, custom length
Cold-rolled steel with an electroplated finish; the exact material specification and plating details are confirmed for the order. The support length can be customized to the equipment depth. Additional hole patterns, material thickness and OEM design requests are subject to engineering review.
Get a support recommendation
Send these details to get started:
- Equipment width, depth and height
- Total equipment weight
- Mounting-interface drawings or clear photos, if available
- Required quantity and any project-specific requirements
Key Features
80 kg per pair base rating
The base configuration is rated 80 kg per pair.
80–180 kg per pair family
Higher-load configurations are available. The 180 kg figure applies to the corresponding configuration only.
Fixed bottom support
A non-sliding support: the equipment rests on the brackets.
Screw-mounted installation
Fixed to the rack with screws, in standard 19-inch racks.
Cold-rolled steel, electroplated
Cold-rolled steel construction with an electroplated finish.
Custom support length
The support length is adapted to the depth of your equipment.
Ideal For
- Rack servers that stay in place
- Network switches
- Storage equipment
- UPS and power equipment
- Industrial rack equipment
- OEM rack cabinet projects
Applications
- Server Cabinets
- Network Cabinets
- Data Center Racks
- Industrial Control Cabinets
- OEM Rack Integration
Custom & OEM Options
- Support length
- Private-label branding and packaging
- Structural changes are reviewed as a separate engineering requirement
Advantages
- Fixed support without sliding parts
- Load configurations from 80 to 180 kg per pair
- Support length matched to the equipment
- Screw-mounted in standard 19-inch racks
FAQ
What is the load capacity of the MS-FIX-80?
The base rating is 80 kg per pair. The family covers configurations from 80 to 180 kg per pair; tell us the equipment weight and we confirm the configuration.
Is this a sliding rail?
No. It is a fixed bottom support and does not slide out. For pull-out access, look at a ball-bearing rail such as the MS-BBR-1U2U-80 or the MS-TLS-120.
Is it tool-less?
No. The brackets are screw-mounted.
Which racks and equipment does it fit?
Standard 19-inch racks, for equipment in the 1U to 4U height classes. The exact fit is confirmed against your equipment width, depth and height.
What can be customized?
The support length. Structural changes are reviewed as a separate engineering requirement.
What do you need before I order?
Equipment width, depth, height and weight, and the quantity.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Need fixed support brackets for your rack?
Send the equipment width, depth and height, the total equipment weight, and a mounting drawing or clear photos. We reply with a recommendation within 24 hours.
