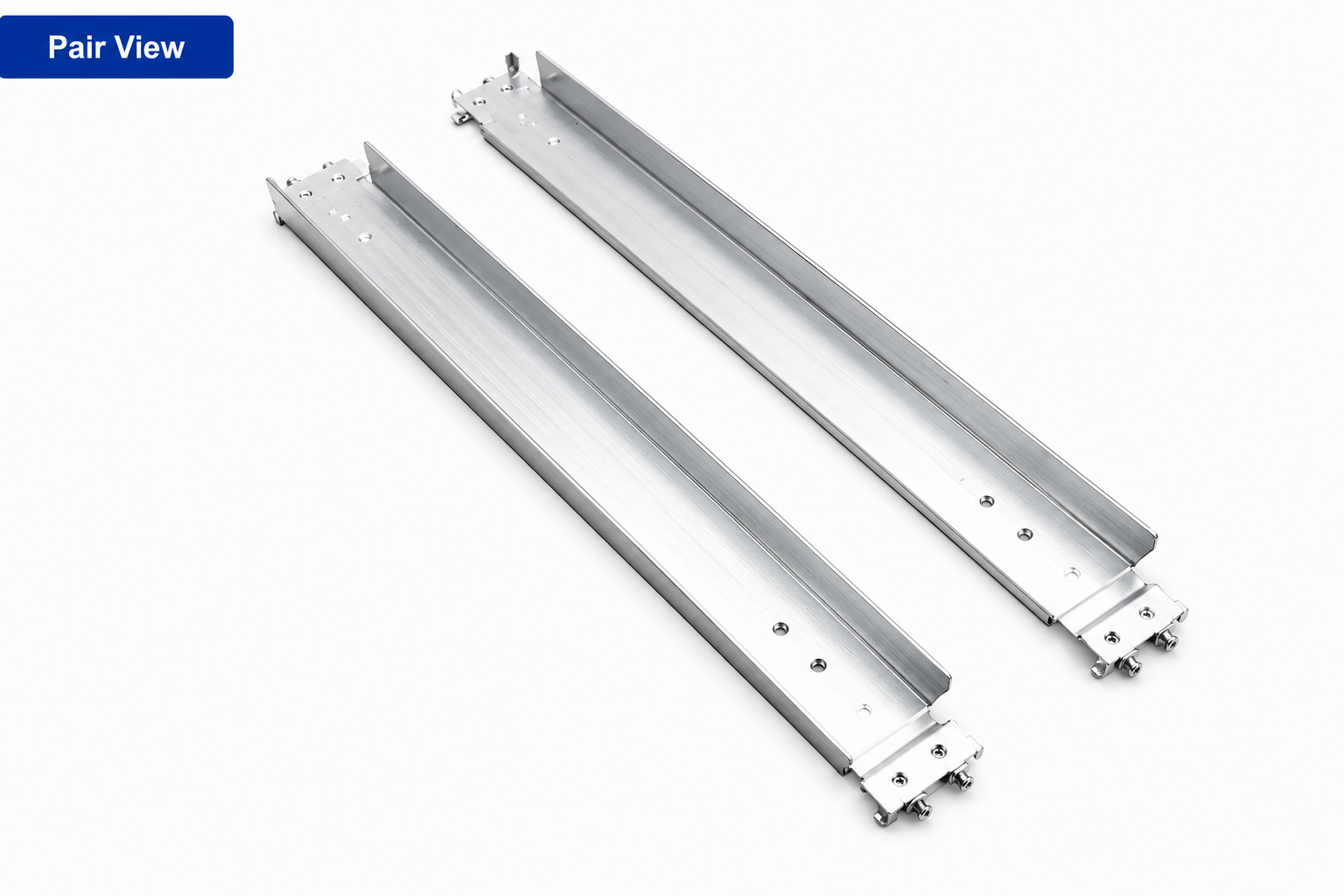

MS-FIX-1U Fixed L-Shaped Rack Support Brackets
SKU MS-FIX-1U · Fixed Rack Rails
Fixed L-shaped support brackets for standard 19-inch server racks.
MS-FIX-1U Fixed L-Shaped Rack Support Brackets
- Chassis width
- 430–448 mm (four width classes)
- Chassis height
- 1U / 2U / 3U / 4U
- Server brands
- Huawei / Dell / HP / Intel
- Load capacity
- 80 kg per pair
- Base rating; family options 80–180 kg per pair
- Rack-side installation
- Screw-mounted
- Customization

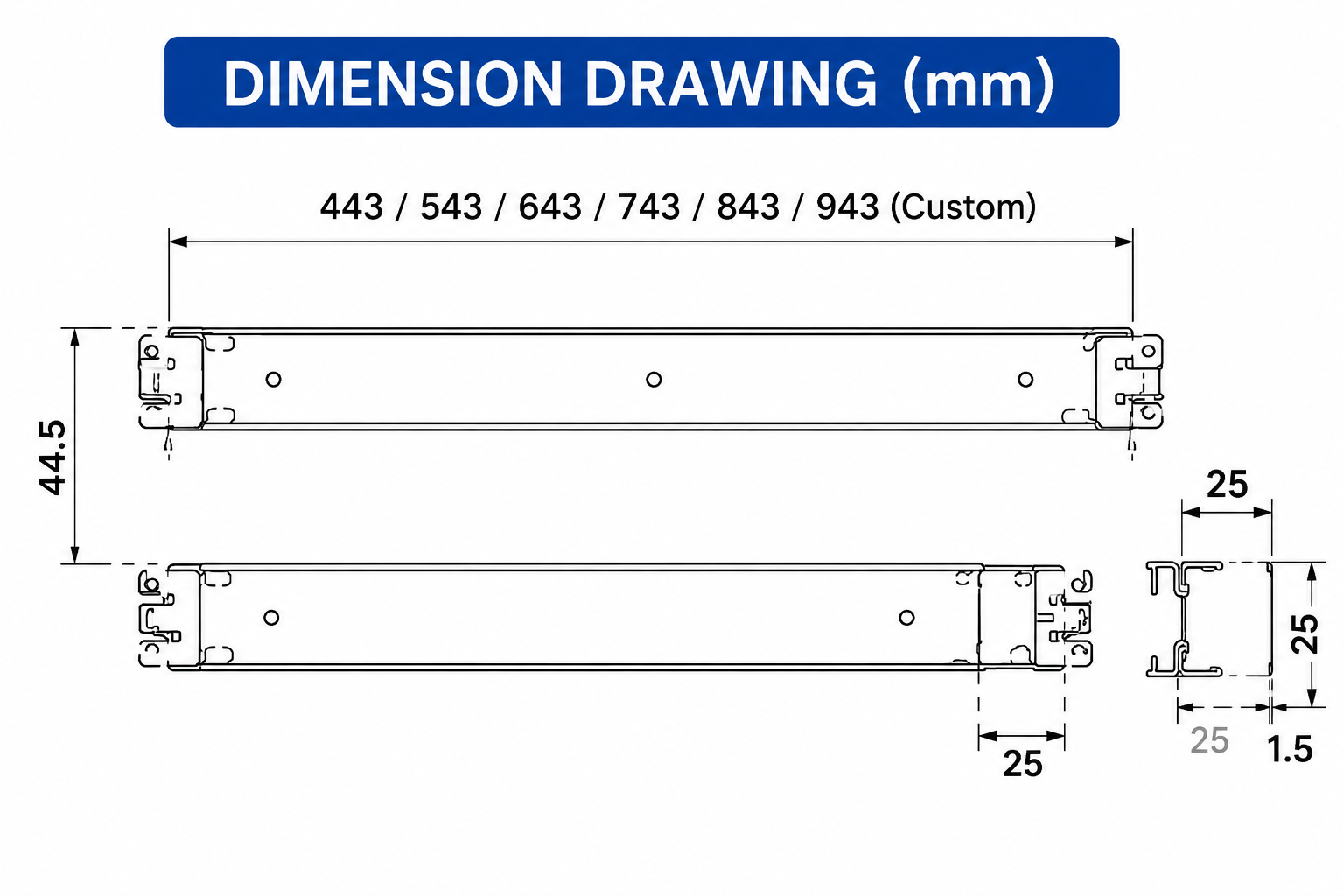

- Support length
- Sliding structure
- Fixed L-shaped support, no sliding mechanism

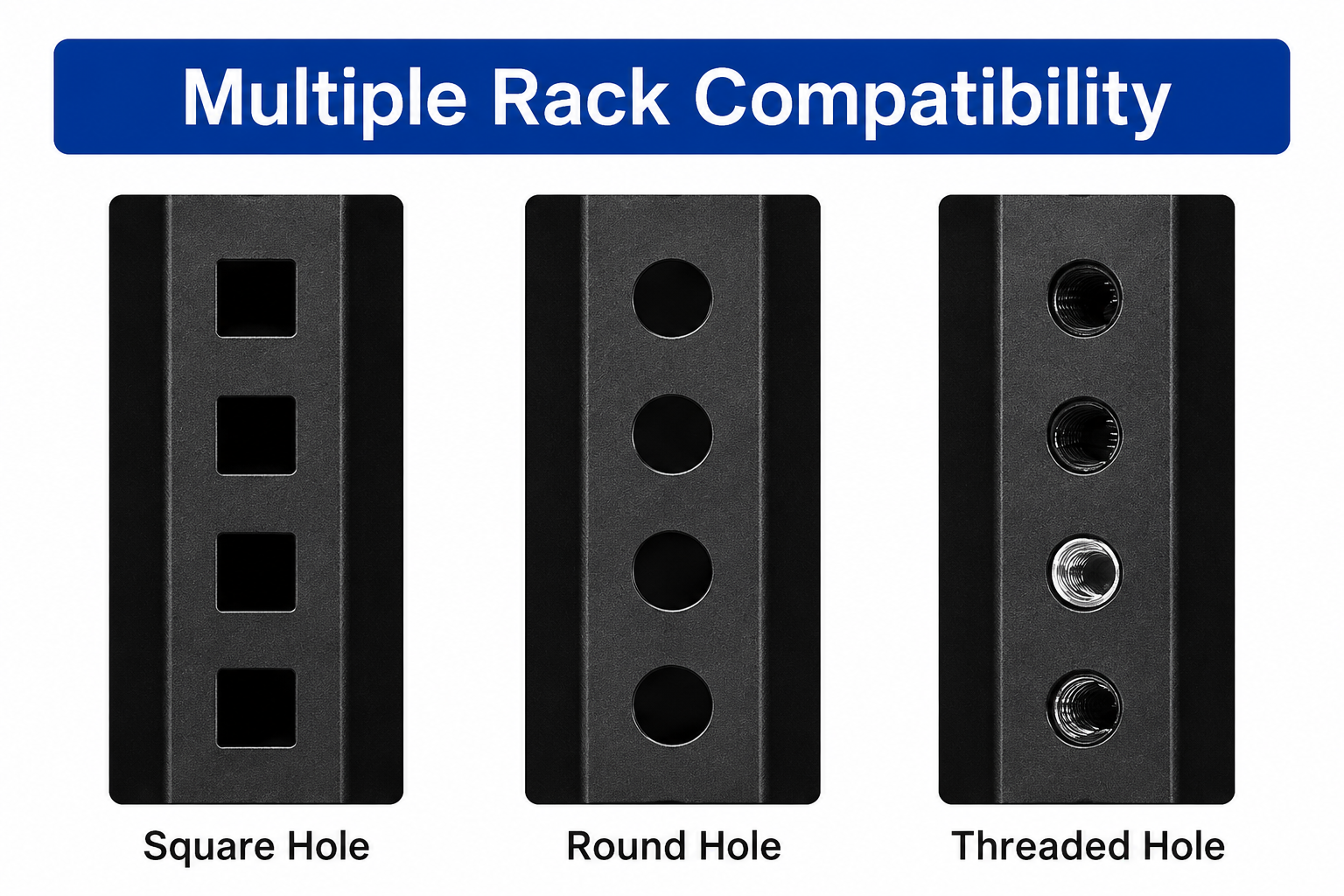

- Rack fit
- 19-inch rack
The MS-FIX-1U is a fixed L-shaped support bracket for standard 19-inch server racks. It is screw-mounted and gives non-sliding bottom support, with a base load rating of 80 kg per pair and family options from 80 to 180 kg per pair. The support length can be customized.
Technical Specifications
Product Summary
MS-FIX-1U brackets are fixed L-shaped supports for standard 19-inch server racks, listed for equipment in the 1U to 4U height classes. They are screw-mounted and have no sliding mechanism: the equipment rests on the brackets and is removed from the rack for service. The base load rating is 80 kg per pair, with family options from 80 to 180 kg per pair. The support length can be customized. Confirm the selected load configuration and your equipment dimensions before ordering.
Key Features
80 kg per pair base rating
The base configuration is rated 80 kg per pair.
80–180 kg per pair family
Higher-load options are available; confirm the load configuration you need.
Fixed L-shaped support
A non-sliding support for equipment that is removed from the rack for service.
Screw-mounted installation
Fixed to the rack with screws, in standard 19-inch racks.
1U to 4U height classes
Listed for equipment in the 1U, 2U, 3U and 4U height classes.
Custom support length
The support length is adapted to the depth of your equipment.
Ideal For
- Static server installation
- Network cabinet support
- Switches and network appliances
- Storage equipment
- OEM rack cabinet integration
- Non-sliding equipment support

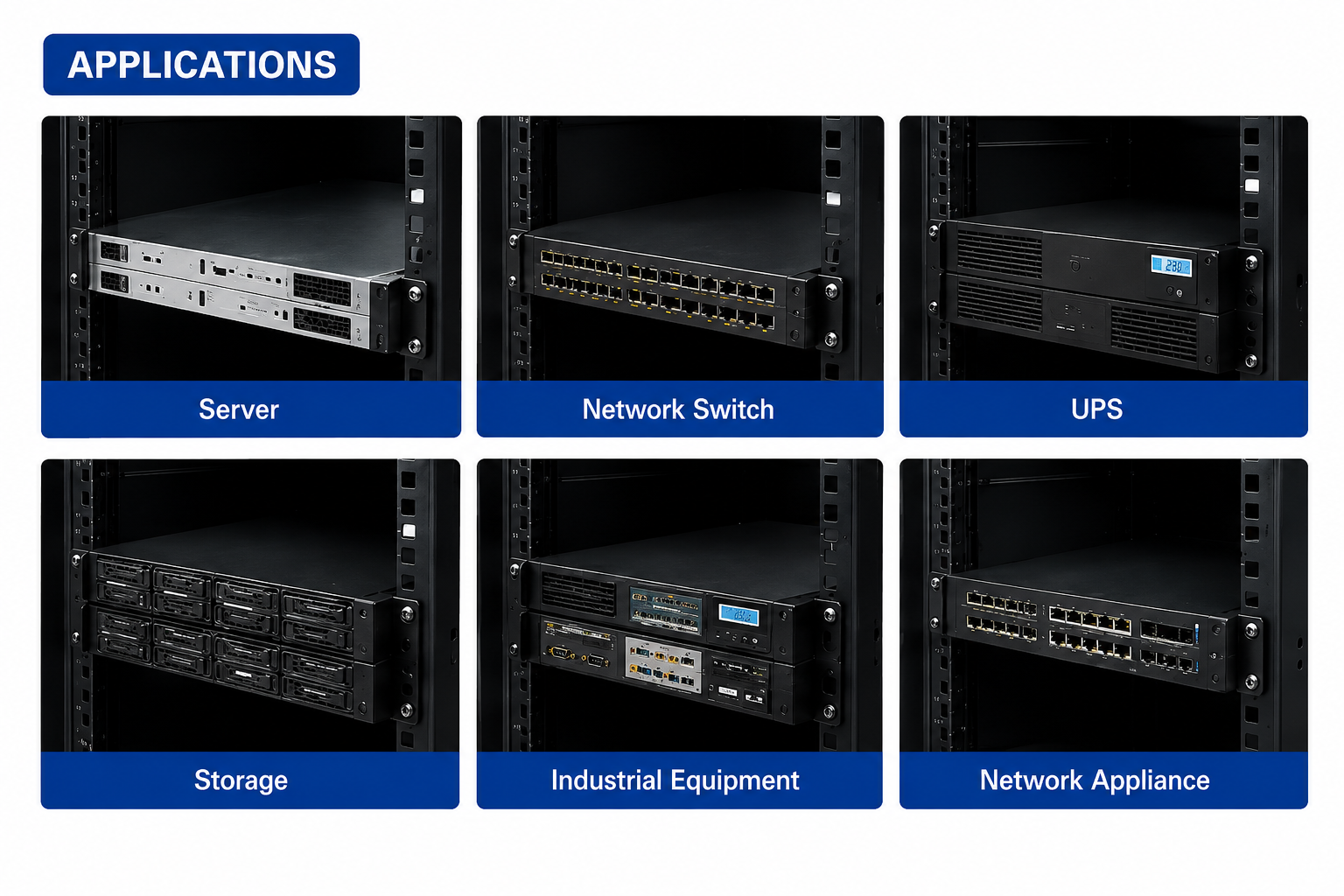

Applications
- Server Cabinets
- Network Cabinets
- Data Center Racks
- UPS Systems
- Network Switches
- Industrial Control Cabinets
- Storage Equipment
- OEM Rack Systems
Custom & OEM Options
- Support length
- Private-label branding and packaging
- Structural changes are reviewed as a separate engineering requirement
Installation Notes

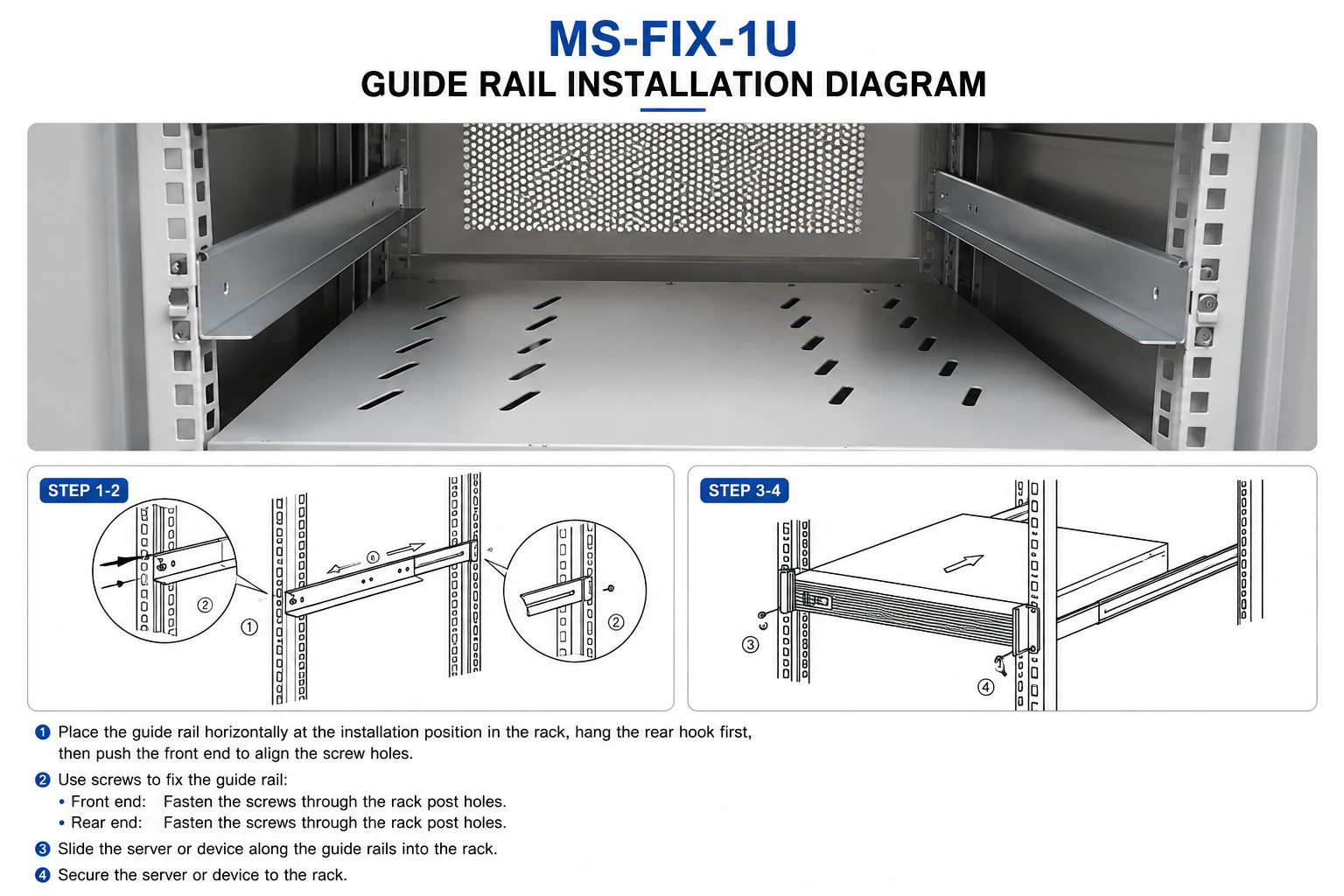

The brackets are screwed to the rack to give fixed support for the equipment.
Information to send before ordering:
- Equipment width, depth and height
- Equipment weight
- Quantity
FAQ
What is the load capacity of the MS-FIX-1U?
The base rating is 80 kg per pair, with family options from 80 to 180 kg per pair. Tell us the equipment weight and we confirm the configuration.
Is this a sliding rail?
No. It is a fixed L-shaped support with no sliding mechanism. For pull-out access, look at a ball-bearing rail such as the MS-BBR-1U2U-80 or the MS-TLS-120.
Which racks and equipment does it fit?
Standard 19-inch racks, for equipment in the 1U to 4U height classes. The exact fit is confirmed against your equipment dimensions.
What can be customized?
The support length. Structural changes are reviewed as a separate engineering requirement.
What do you need before I order?
Equipment width, depth, height and weight, and the quantity.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Need fixed support brackets for your rack project?
Send the equipment width, depth and height, the total equipment weight, and a mounting drawing or clear photos. We reply with a recommendation within 24 hours.
