MS-TLS-1U-100 Tool-less Rack Support Rail
SKU MS-TLS-1U-100 · Sliding Rack Rails
MS-TLS-1U-100 Tool-less Rack Support Rail
Quick-install rack support rail designed for fast deployment of industrial PCs, network switches, lightweight servers, and rack-mounted equipment in standard 19-inch cabinets.
| Product Type | Tool-less Rack Support Rail |
|---|---|
| Model | MS-TLS-1U-100 |
| Rail Type | Sliding Support / Tool-less |
| Rack Standard | 19-inch Rack |
| Rack Type | 4-Post Rack |
| Rack Hole Type | Square Hole |
| Installation Type | Tool-less Mount |
| U Height | 1U Compatible |
| Load Capacity | Up to 100kg |
| Material | High Strength Steel |
| Surface Finish | Zinc Plated |
| Rack Compatibility | Universal |
| OEM Support | Yes |
| Extension Type | Static Support |
| Application | IPC / Switch / Server / Industrial Equipment |
| SKU | MS-TLS-1U-100 |
Product Summary
The MS-TLS-1U-100 is a universal quick-mount rack support rail designed for fast installation in standard 19-inch server cabinets and network racks.
Featuring square-hole compatible tool-less mounting and high-strength steel construction, this rail provides stable support for IPCs, switches, industrial equipment, and lightweight servers while reducing installation time and deployment complexity.
Ideal for OEM rack manufacturers, system integrators, industrial control projects, and fast-deployment infrastructure environments.
Key Features

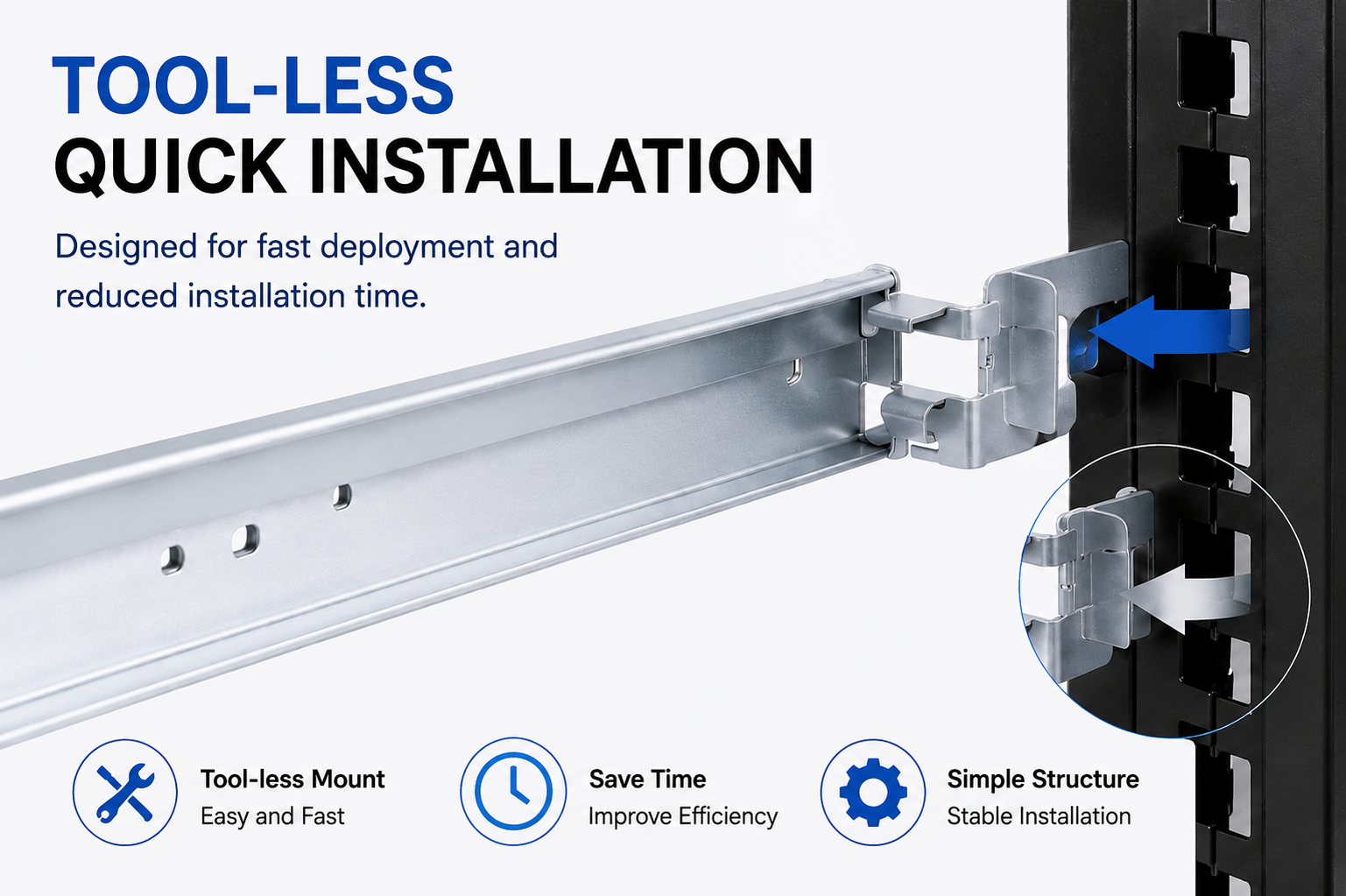

Tool-less Quick Installation
Designed for rapid rack deployment with simplified mounting structure and reduced installation time.

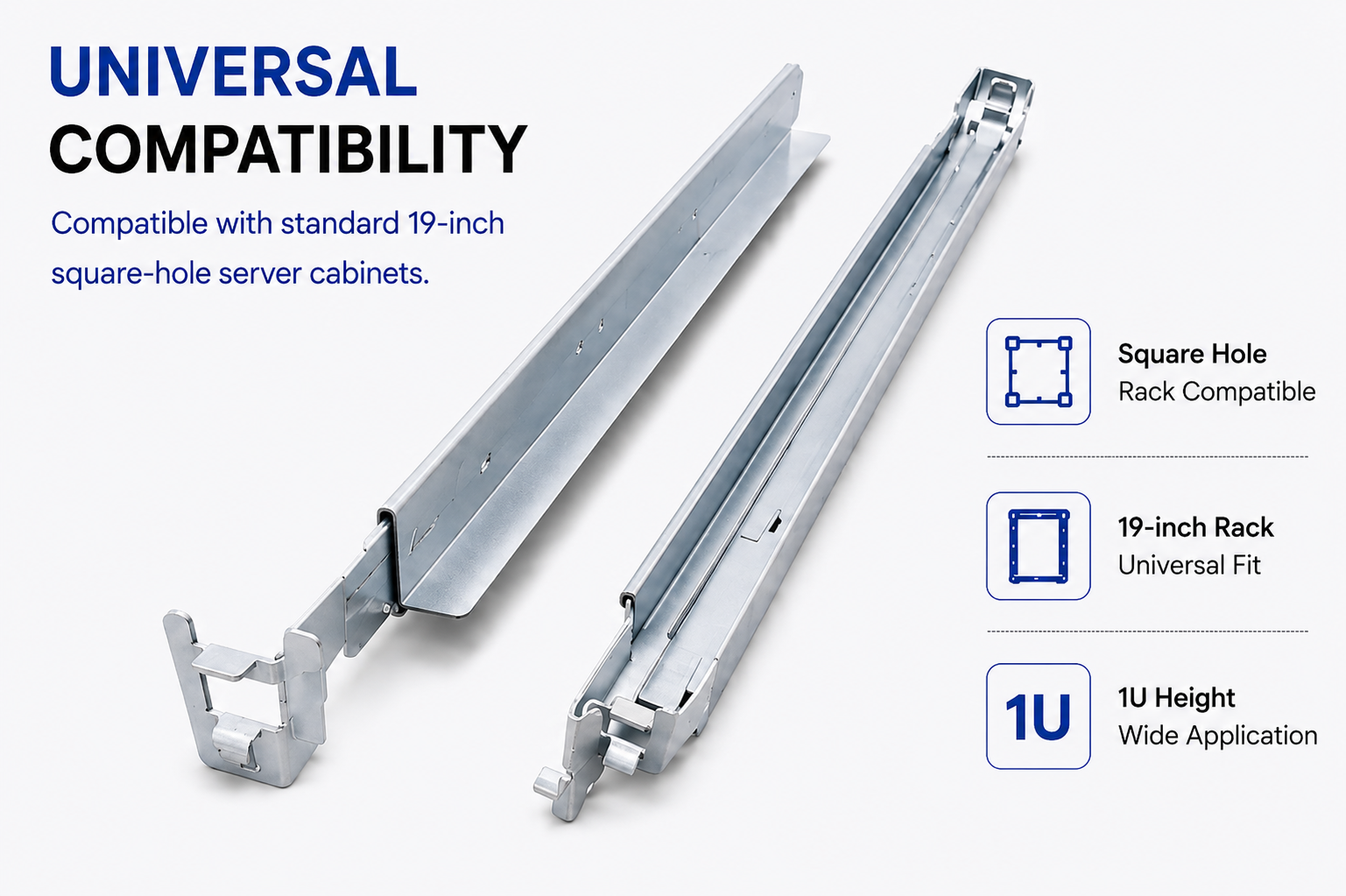

Universal Rack Compatibility
Compatible with standard 19-inch square-hole rack cabinets.
High Strength Steel Structure
Manufactured using high-strength steel material for stable equipment support and long-term durability.
Cost-Effective Rack Support Solution
A practical alternative to complex sliding rail systems for static rack-mounted equipment.

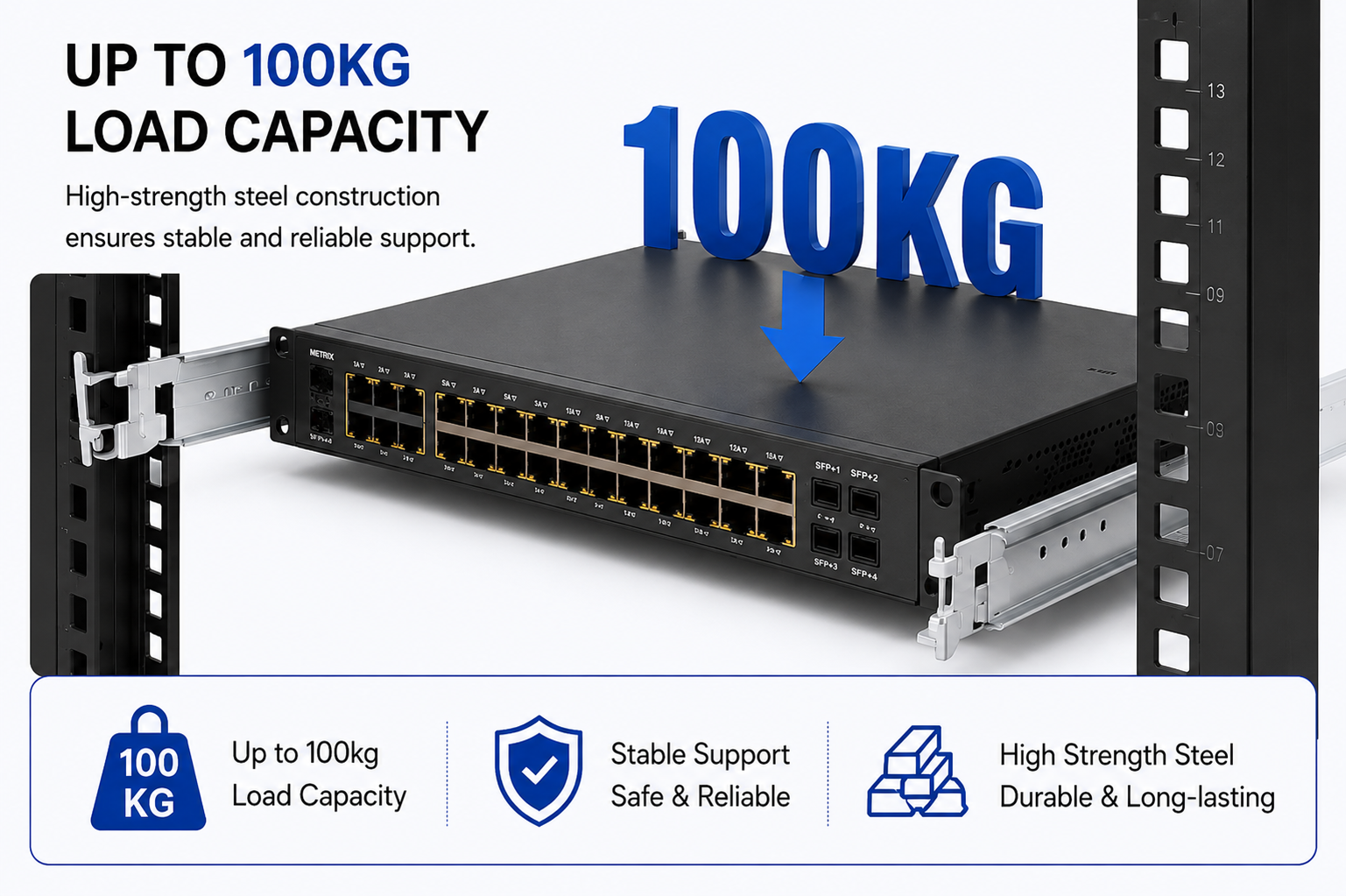

Up to 100kg Load Support
Supports industrial equipment, switches, IPCs, and lightweight servers.
OEM Customization Available
Custom dimensions, mounting structures, branding, and packaging available.

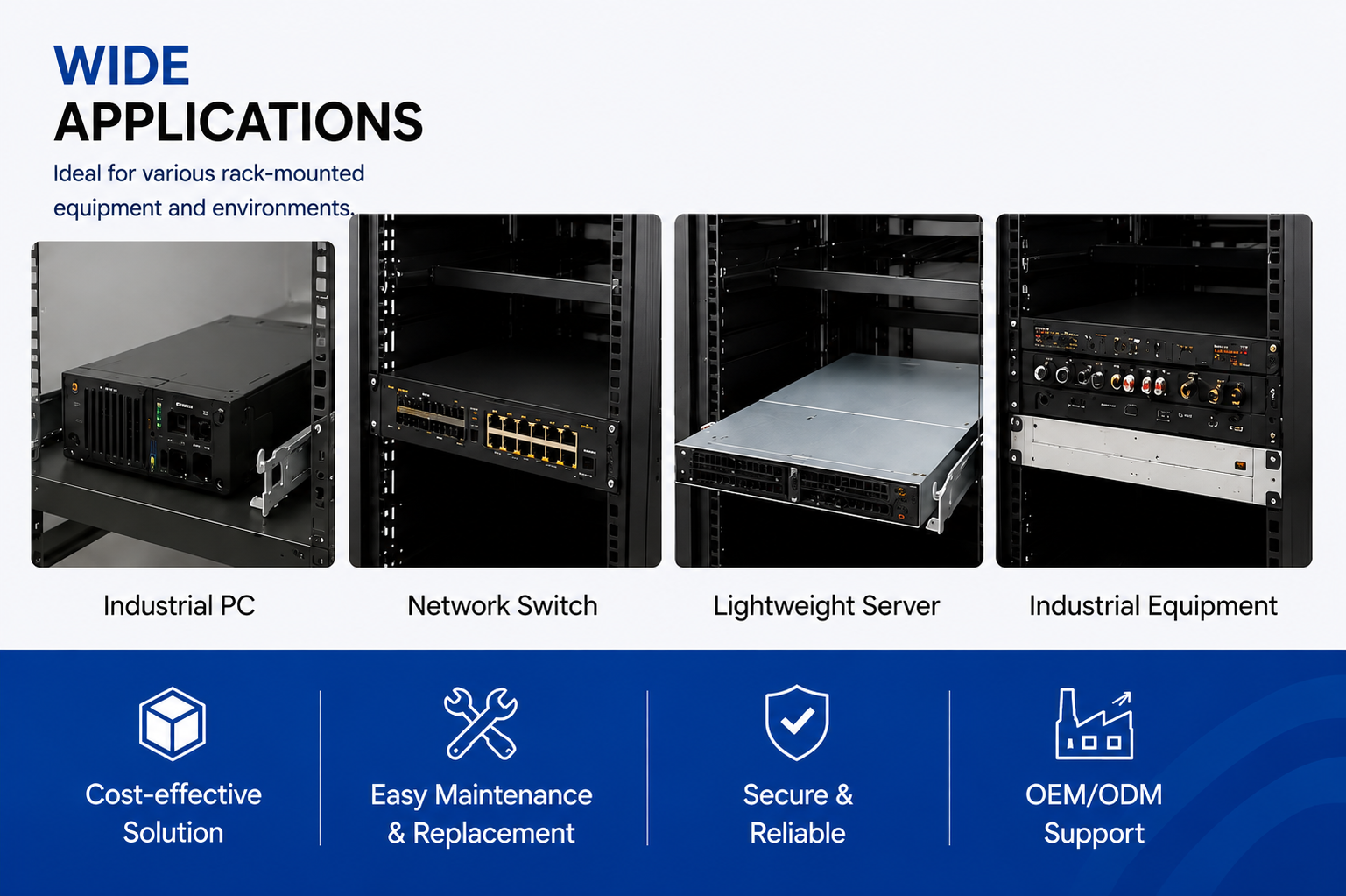

Ideal For
- Industrial PCs (IPC)
- Network switches
- Lightweight servers
- Edge computing devices
- Industrial control equipment
- Rack-mounted appliances
- OEM rack cabinet projects
- Fast deployment infrastructure
Applications
- Industrial Control Cabinets
- Data Center Racks
- Network Cabinets
- IPC Deployment
- Switch Installation
- Industrial Automation Systems
- Edge Computing Infrastructure
- OEM Rack Integration
Custom & OEM Options
- Metrix supports:
- Custom rail length
- Load customization
- Mounting structure optimization
- OEM branding
- Private label packaging
- CAD drawing support
- Bulk production
- Project-based customization
Advantages
- Compared with traditional screw-mounted support rails:
- Faster installation
- Reduced deployment time
- Easier maintenance
- Lower installation labor cost
- Cleaner rack integration
- Simplified equipment replacement
Compatible Equipment
- Supports:
- Industrial PCs
- Network Switches
- Industrial Servers
- Embedded Computing Devices
- Rack Appliances
- Communication Equipment
- OEM Rack Systems
FAQ
Does this rail require screws?
The rail is designed for simplified quick installation and square-hole rack deployment. Certain applications may use additional screw fixing for enhanced stability.
What rack type is supported?
Standard 19-inch square-hole server cabinets and network racks.
What equipment is this suitable for?
Industrial PCs, switches, lightweight servers, industrial equipment, and rack-mounted appliances.
Is this a full-extension sliding rail?
No. This is a quick-mount support rail focused on fast deployment and stable support.
Can the rail size be customized?
Yes. Custom lengths and structures are available.
Is OEM service available?
Yes. Metrix supports OEM branding, custom packaging, and project-based manufacturing.
Need fast-install rack rails for your project?
Send us your rack type, equipment dimensions, and load requirements.
