MS-TLS-115 Tool-less Ball Bearing Server Rail Kit
SKU MS-TLS-115 · Sliding Rack Rails
MS-TLS-115 Tool-less Ball Bearing Server Rail Kit
A heavy-duty tool-less ball-bearing server rail kit with full-extension slides, supporting up to 115kg for servers, storage and networking equipment in 19-inch racks.
| SKU | MS-TLS-115 |
|---|---|
| Product Name | Tool-less Ball Bearing Server Rail Kit |
| Rail Type | Three-Section Ball Bearing Rail |
| Installation Method | Tool-less Mounting |
| Extension Type | Full Extension |
| Load Capacity | 115kg (253 lbs) |
| Compatible Rack Width | 430–434mm |
| Material | Cold-Rolled Steel |
| Surface Finish | Zinc Plated |
| Application | 19-Inch Rack Cabinets |
| Service Life | 50,000+ Cycles |
| OEM Service | Supported |
| ODM Service | Supported |
| Packaging | Individual Carton |
| SKU | MS-TLS-115 |
Product Summary
The **MS-TLS-115 Tool-less Ball Bearing Server Rail Kit** is a heavy-duty server rack rail solution designed for 19-inch rack cabinets. Featuring a tool-less mounting system, full-extension ball bearing slides, and a robust load capacity of up to **115kg (253 lbs)**, it provides secure support and smooth operation for servers, storage systems, networking equipment, and industrial rack-mounted devices.
Designed for quick deployment and maintenance, the rail kit allows fast installation without additional tools while ensuring reliable performance in demanding data center and telecom environments.
Key Features

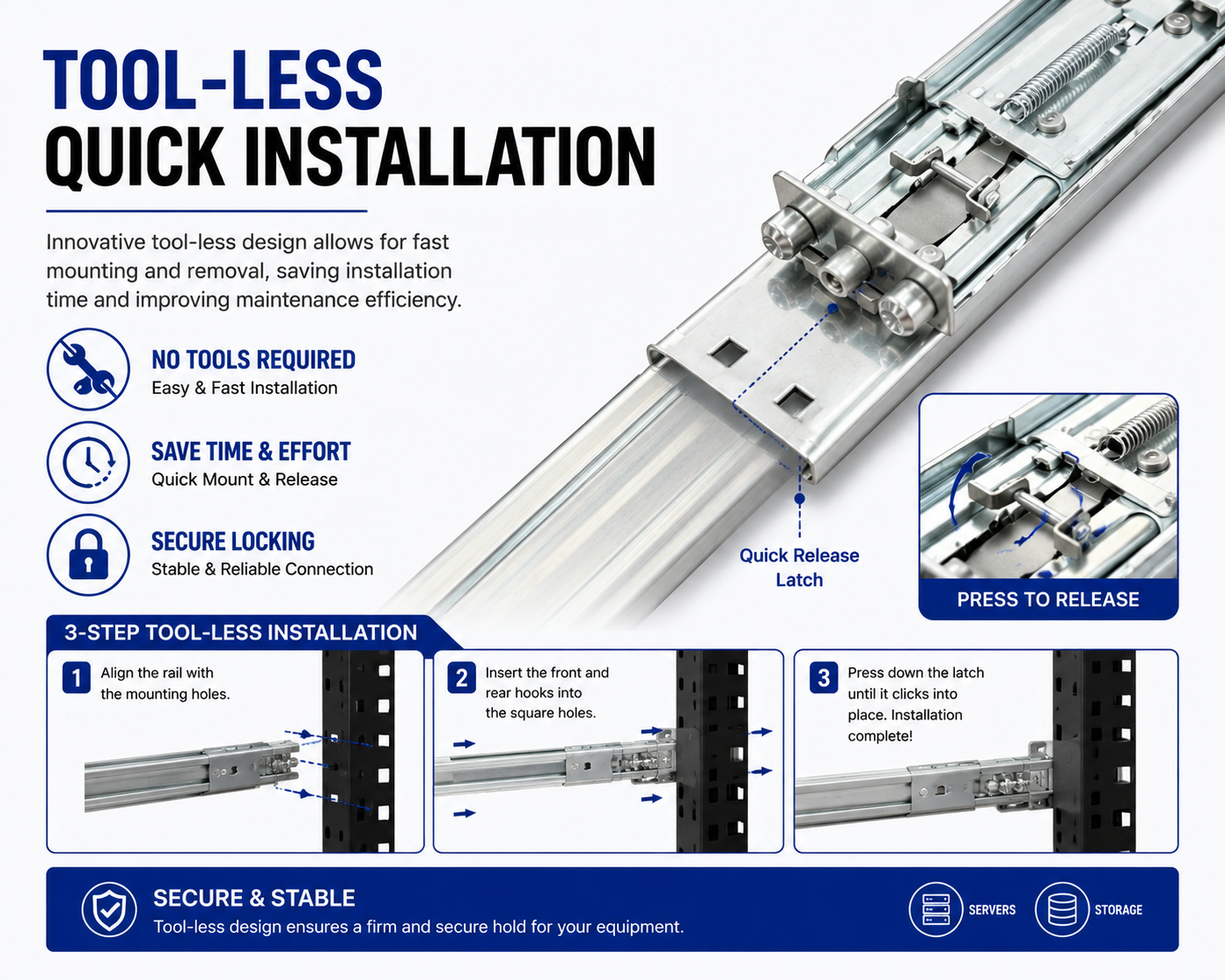

Tool-less Installation
Quick and efficient mounting design reduces installation time and simplifies equipment maintenance.

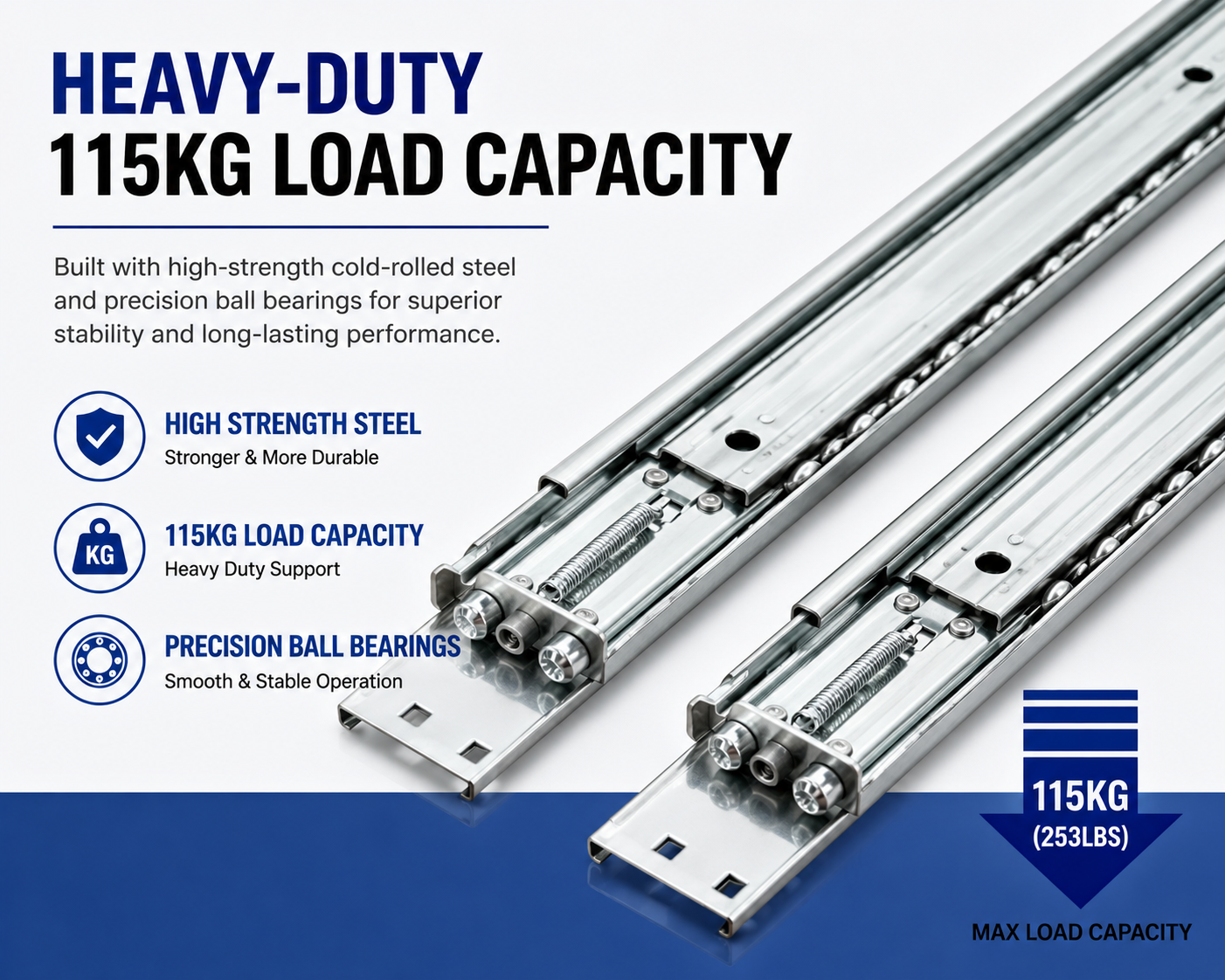

Heavy-Duty Load Capacity
Supports equipment weighing up to **115kg (253 lbs)**, suitable for enterprise-grade servers and storage systems.

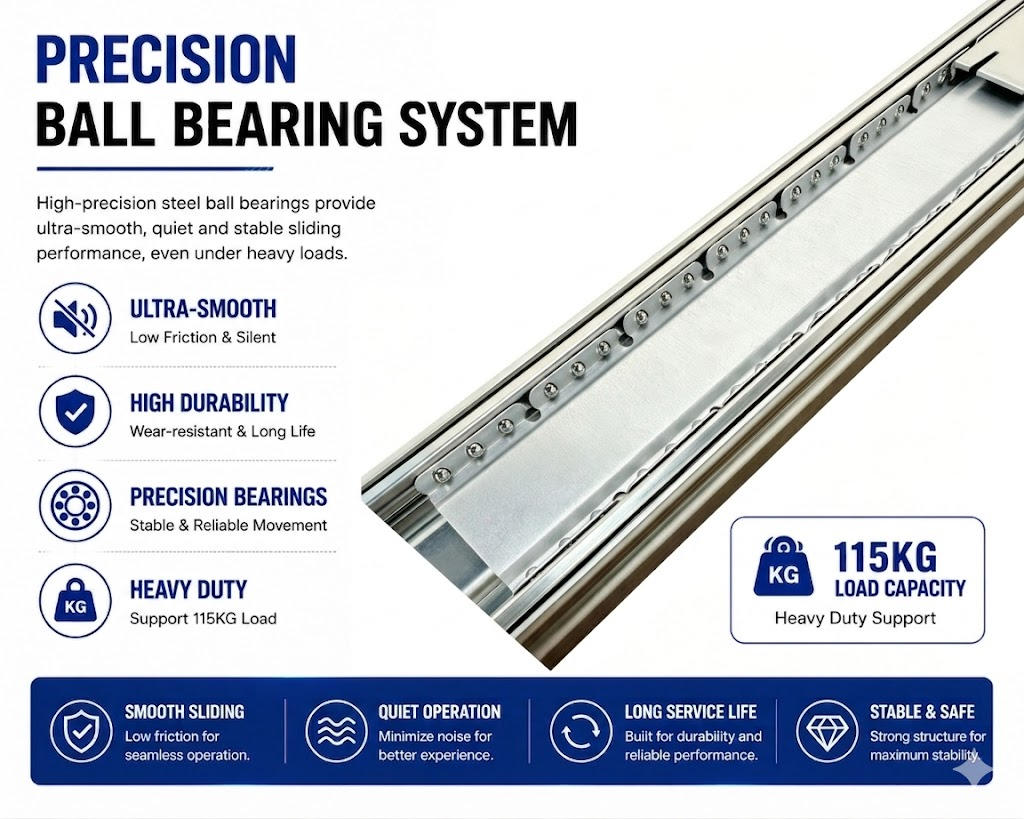

Smooth Ball Bearing Operation
Precision steel ball bearings provide smooth, stable, and low-friction sliding performance.
Full Extension Access
Allows complete access to rack-mounted equipment for maintenance, upgrades, and servicing.
Quick Release Mechanism
Integrated release latch enables convenient equipment removal and replacement.

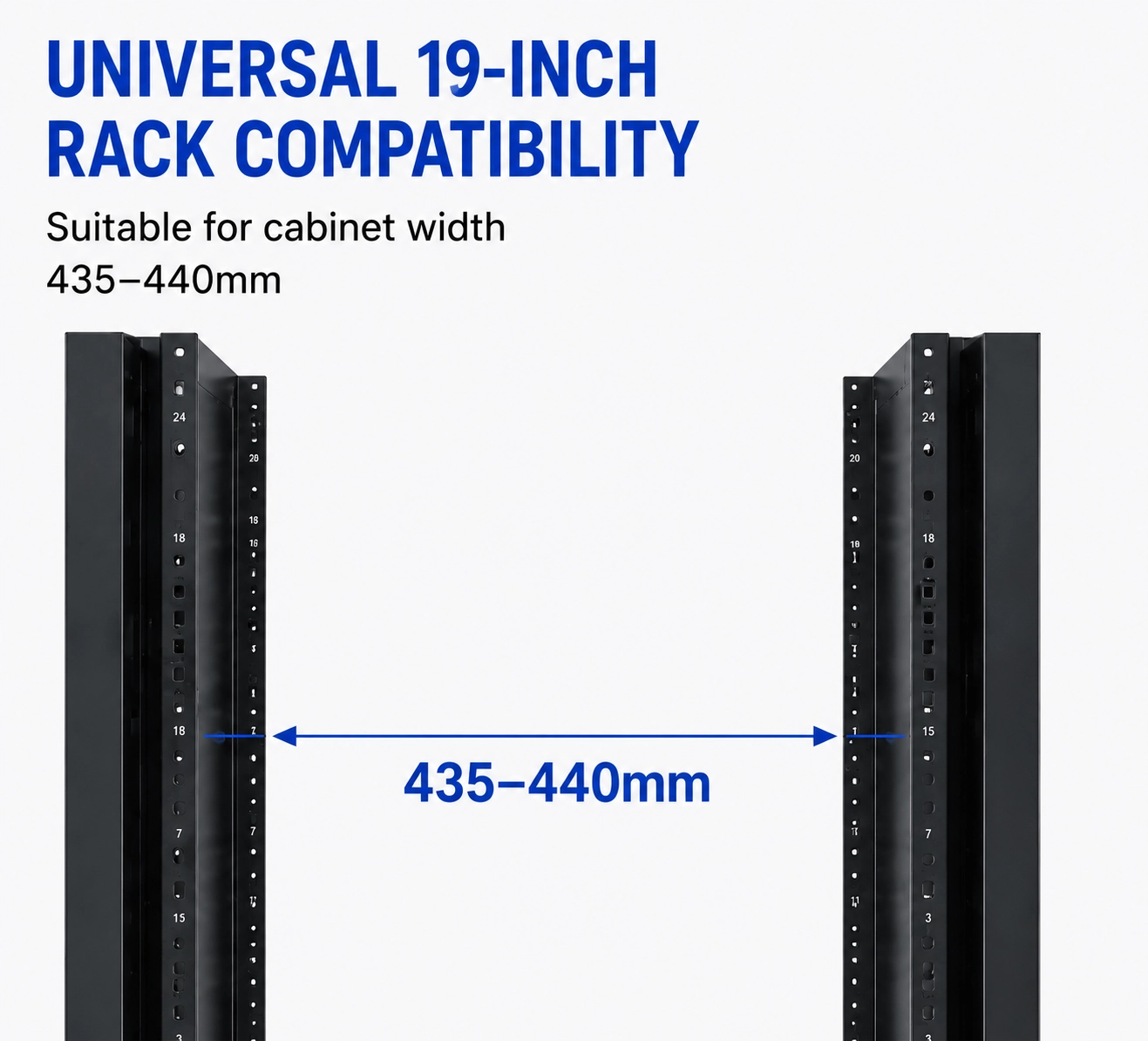

Universal 19-Inch Rack Compatibility
Compatible with standard 19-inch server cabinets and rack enclosures.
Corrosion-Resistant Finish
High-quality zinc-plated steel construction ensures durability and long service life.
OEM & ODM Customization
Custom lengths, mounting hole patterns, branding, and packaging are available upon request.
Ideal For
- Rack servers
- Storage systems
- Network switches
- Telecom equipment
- Data center infrastructure
- Edge computing devices
Applications
- The MS-TLS-115 is suitable for a wide range of rack-mounted equipment, including:
- Rack Servers
- Storage Systems
- Network Switches
- Telecom Equipment
- Data Center Infrastructure
- Industrial Control Systems
- Security Monitoring Equipment
- Edge Computing Devices
Custom & OEM Options
- Metrix Slide provides flexible customization solutions for global server and rack equipment manufacturers.
- Available customization options include:
- Custom Rail Lengths
- Custom Hole Patterns
- Load Capacity Optimization
- Private Label Branding
- Custom Packaging
- Special Surface Finishes
- Project-Based Development
Package Contents
- 1 Pair of MS-TLS-115 Server Rails
- Installation Guide
- Mounting Accessories (if required by project specification)
FAQ
Does installation require tools?
No. The tool-less mounting system clips into square-hole racks for fast deployment.
What is the load capacity?
Up to 115kg (253 lbs) per pair with full-extension ball-bearing slides.
Is OEM/ODM available?
Yes. Custom lengths, hole patterns, branding and packaging are supported.
Need heavy-duty tool-less sliding rails?
Tell us your rack depth, load and U height — we'll match or customize the right ball-bearing kit.
