MS-FMR-60 Two-Section Friction Server Rail Kit
SKU MS-FMR-60 · Universal Server Rails
Screw-mounted friction rails for 19-inch racks and 436–440 mm wide 1U to 4U server chassis.
MS-FMR-60 Two-Section Friction Server Rail Kit
- Chassis width
- 436–440 mm
- Chassis height
- 1U / 2U / 3U / 4U
- Load capacity
- 60 kg per pair
- Specified; no test report issued
- Rack-side installation
- Screw-mounted
- Customization

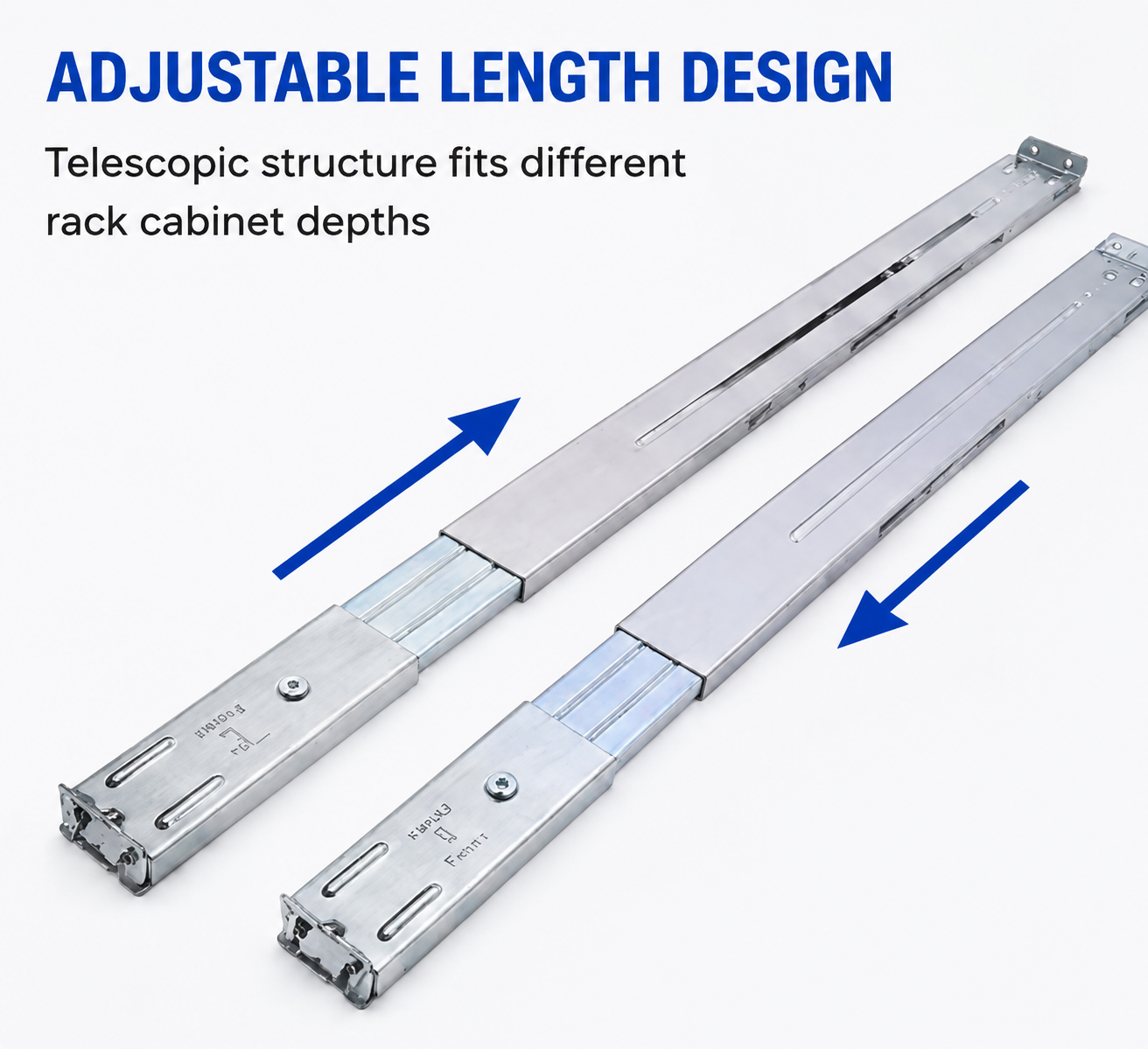

- Rail length and mounting-hole positions
- Sliding structure
- Two-section friction
- Rack fit

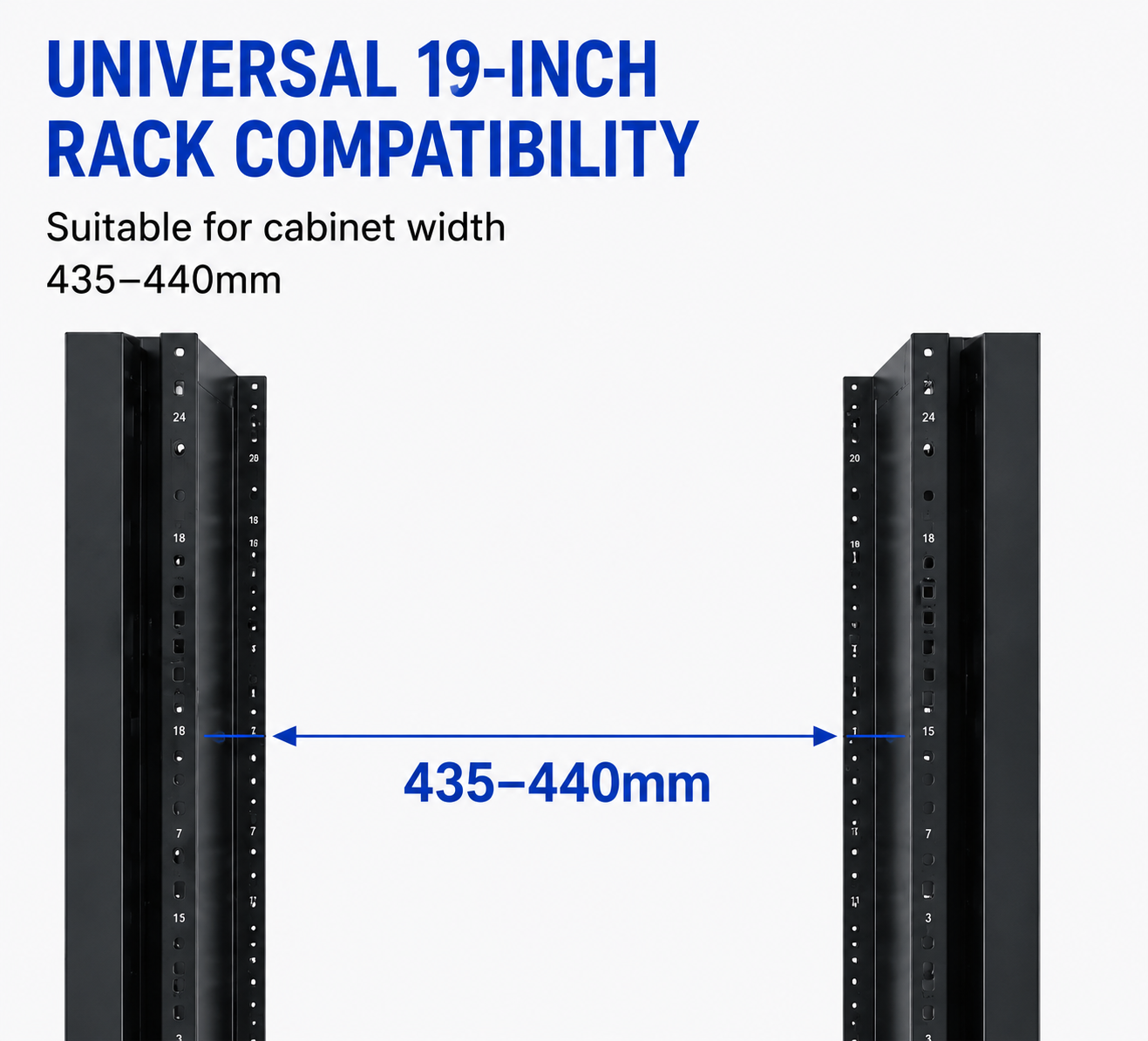

- 19-inch rack
The MS-FMR-60 is a two-section friction server rail kit for 19-inch racks and 1U to 4U server chassis 436–440 mm wide, with a load capacity of 60 kg per pair. Screw-mounted, in SPCC cold-rolled steel, with rail length and mounting-hole positions customized to the chassis drawing.
Technical Specifications
Product Summary
The MetrixSlide MS-FMR-60 uses a two-section friction sliding mechanism and SPCC cold-rolled steel construction. It is screw-mounted in 19-inch racks, fits 1U to 4U server chassis 436–440 mm wide and carries 60 kg per pair. Rail length and mounting-hole positions can be customized to suit the chassis drawing. Final selection considers the chassis dimensions, the mounting interfaces and the total equipment weight; width and U height alone do not establish complete compatibility.
Product Details
Select the configuration
Send the chassis depth, width, U height, total installed equipment weight, mounting drawing or interface photographs, and sample / order quantity. MetrixSlide reviews the base rail configuration and bracket arrangement, then confirms the proposed length and hole layout for your application. Width and U height alone do not establish complete compatibility.

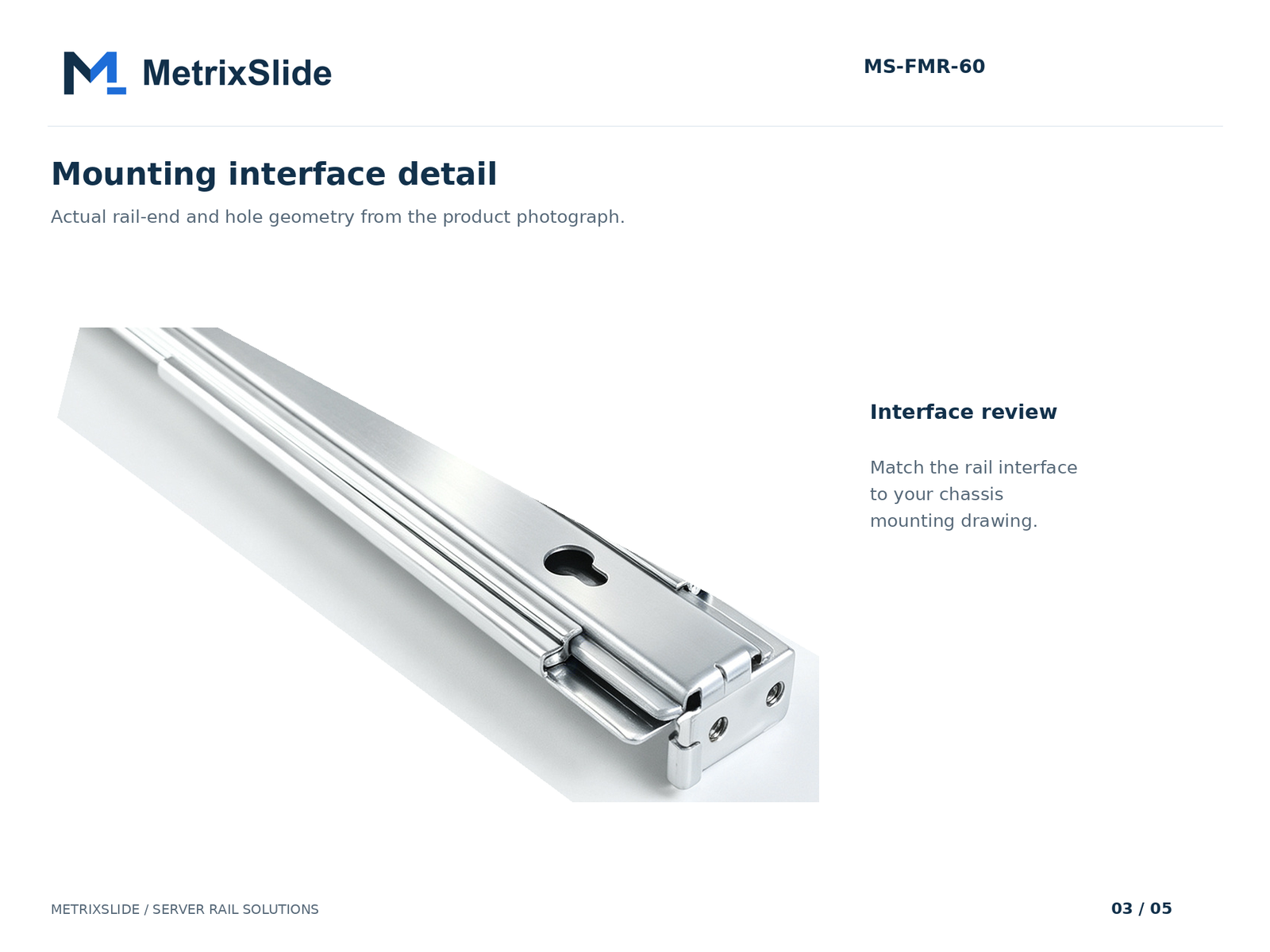

Screw-mounted interface
The MS-FMR-60 is screw-mounted. The fasteners and the steps on the rack side and the chassis side are confirmed on the drawing.

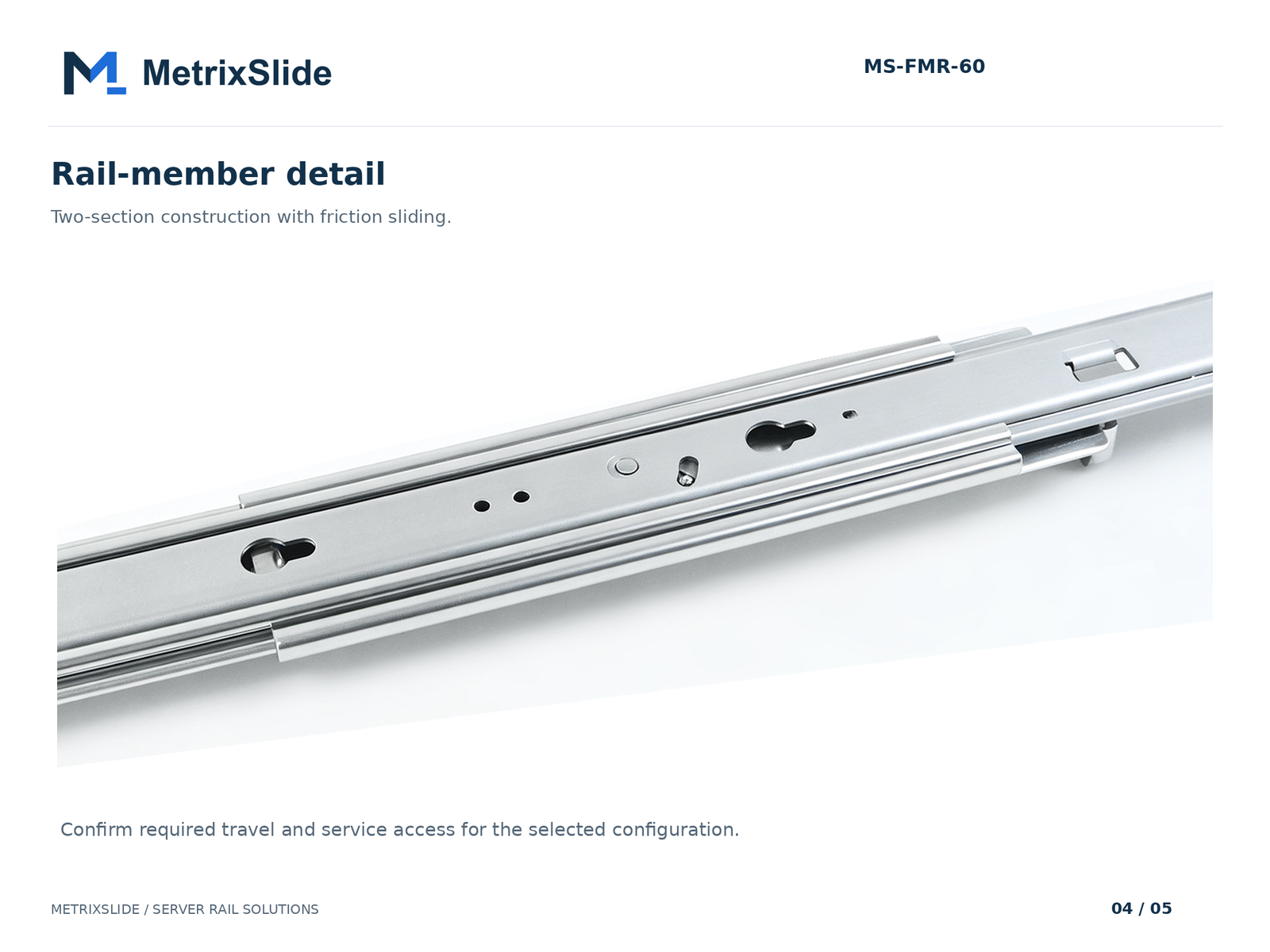

Two-section friction slide in SPCC steel
The rail members are made from SPCC cold-rolled steel and slide on a two-section friction mechanism, without ball bearings.
Customization process
Chassis requirements → base rail selection → length and hole-position drawing → sample review → installation and performance validation → approved production configuration.
Changes to the rail architecture or the mounting-interface system require a separate engineering review.

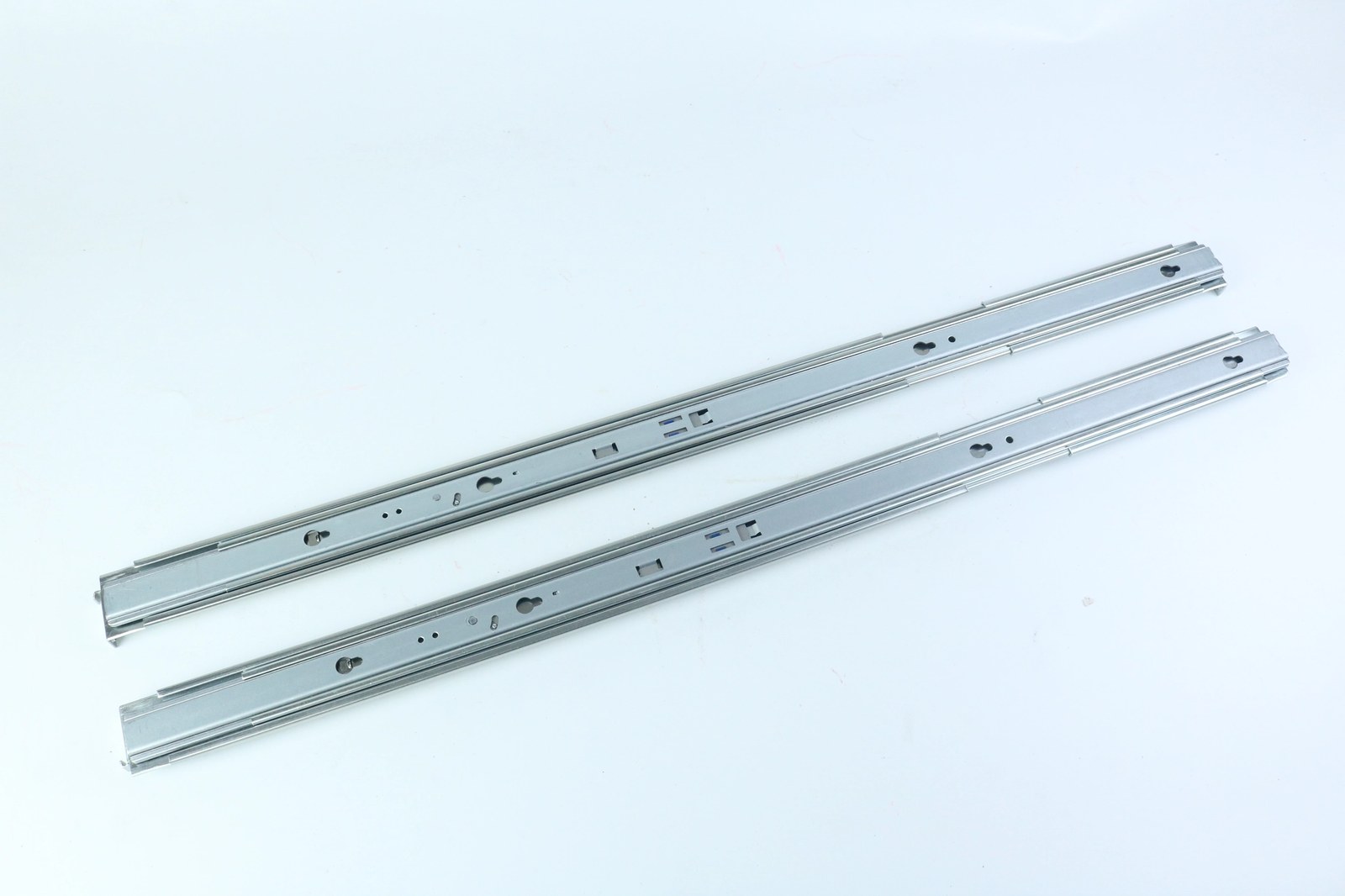

Product photograph
Studio photograph of the actual rail pair, without retouching of the product.
Key Features
60 kg per pair
The stated load capacity is 60 kg per pair. Share the total installed equipment weight so we can confirm the proposed configuration.

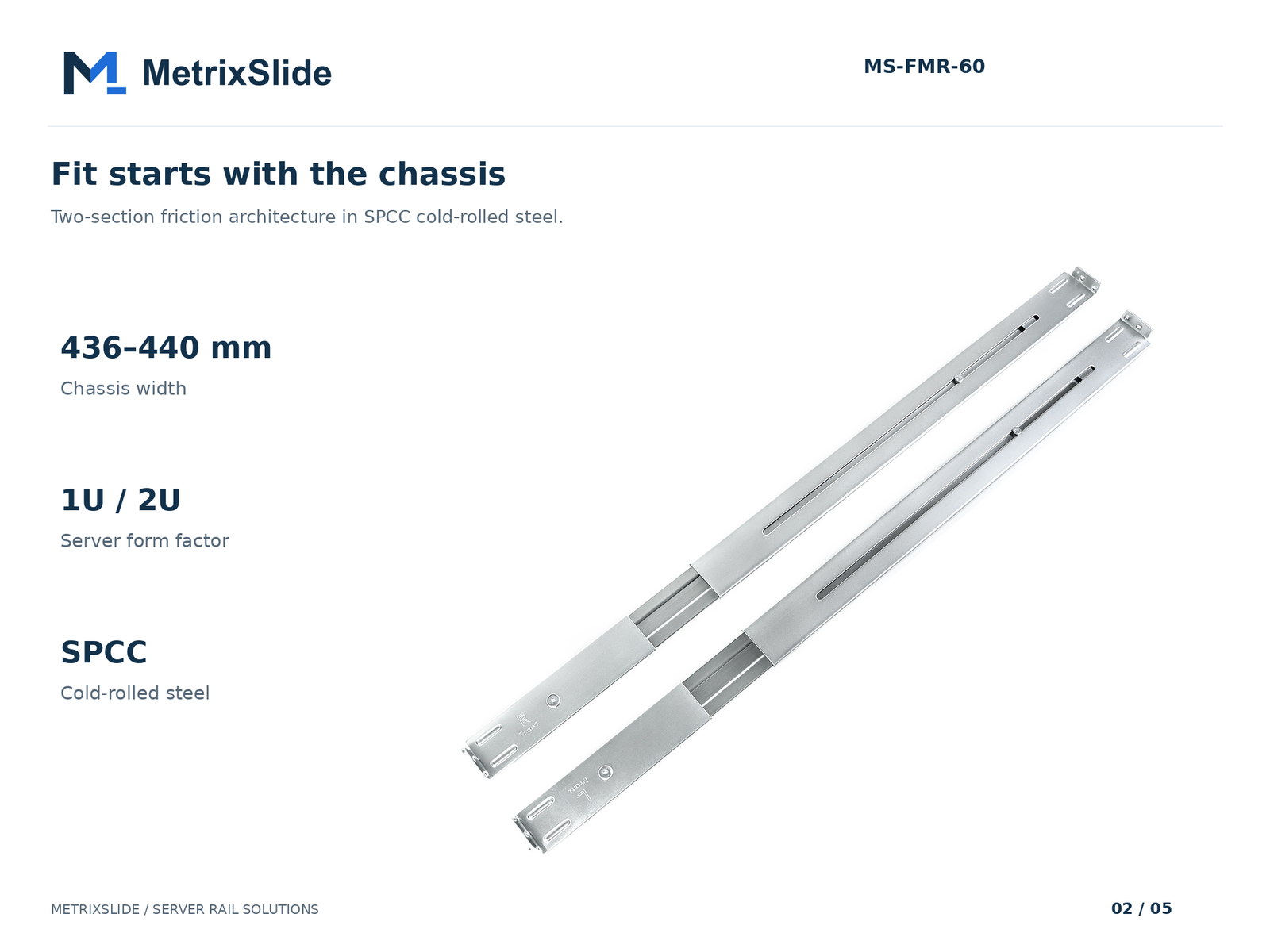

For 1U to 4U chassis 436–440 mm wide
The selection range is 436–440 mm chassis width. Mounting features and the complete application are reviewed as well.
Two-section friction slide
A two-section friction sliding mechanism, not a ball-bearing rail.
Screw-mounted installation
Screw-mounted in 19-inch racks. Rack-hole compatibility and fasteners are reviewed before ordering.
SPCC cold-rolled steel
The rail members are made from SPCC cold-rolled steel.

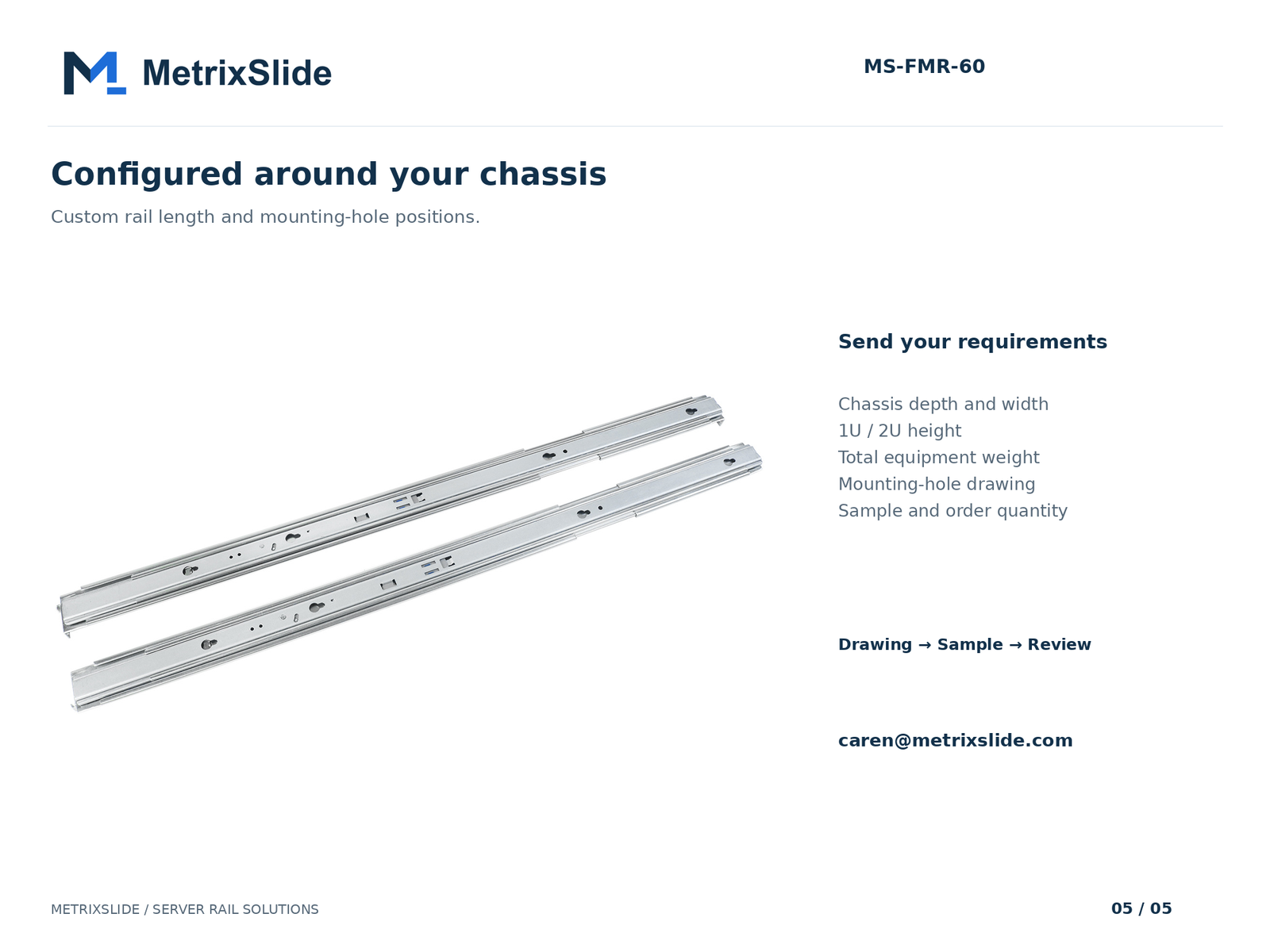

Custom length and hole positions
Provide the chassis depth and mounting drawing so the configuration can be reviewed.
Ideal For
- Network switches & routers
- Telecom equipment
- Industrial control systems
- Lightweight 1U to 4U servers
- Fixed-mount data center equipment
- OEM rack projects
Applications
- Network Switches
- Routers & Firewalls
- Telecom Equipment
- Industrial Control Systems
- Lightweight Servers
- Data Centers
Custom & OEM Options
- Rail length
- Mounting-hole positions
- Bracket position, to match your rack
- Private-label branding and packaging
- Structural changes are reviewed as a separate engineering requirement
Package Contents
- 1 pair of MS-FMR-60 server rails
- Mounting accessories as agreed for the project
FAQ
Which chassis sizes are supported?
The stated selection range is 436–440 mm chassis width for 1U to 4U servers. Mounting features and the complete application must also be reviewed.
Is this a ball-bearing rail?
No. This model uses a two-section friction sliding mechanism.
Can the length and hole positions be customized?
Yes. Provide the required chassis depth and mounting drawing so the configuration can be reviewed.
How is the rail installed, and what is its load capacity?
This model uses screw mounting and has a stated load capacity of 60 kg per pair. Rack-hole compatibility, fasteners and application-specific operating conditions are reviewed before ordering.
What are the MOQ and sample lead time?
Sample quantity and order quantity are agreed with the project. For a customized version, sample pairs are typically ready 15 to 20 days after drawing approval. Samples are quoted with the project.
Select the configuration
Send the chassis depth, width and U height, the total equipment weight including the chassis, and a mounting drawing, CAD file or clear photos. We reply with a rail recommendation within 24 hours.
